SKU: 6804-ZZE/C3-NACHI

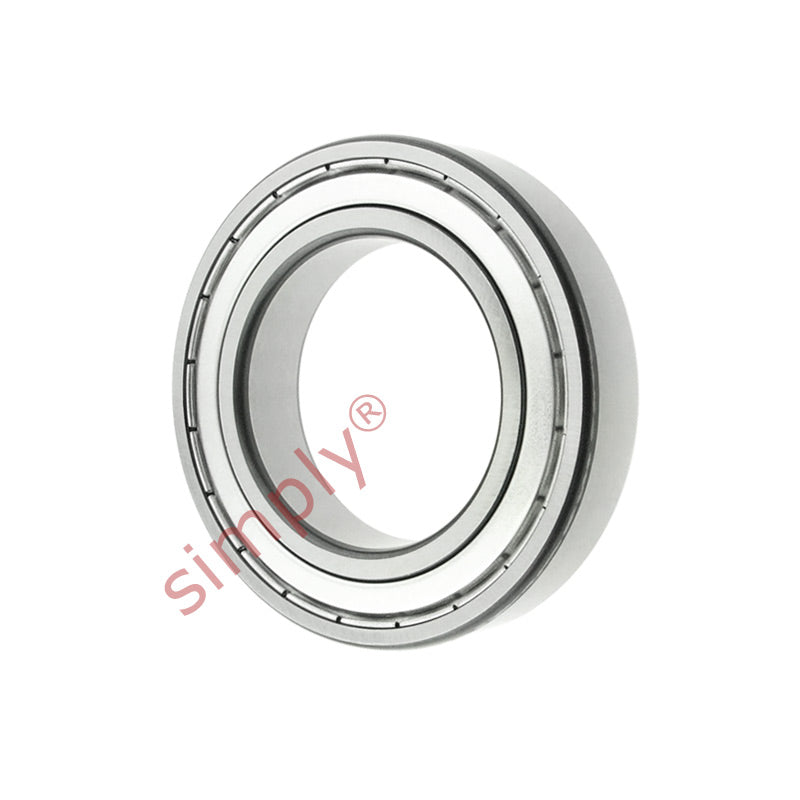

NACHI 6804ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 20x32x7mm
NACHI 6804ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 20x32x7mm
Equivalent to: 6804ZZC3 68042ZC3 6804.2ZC3 6804KDDC3 6804DDC3 68042ZRC3 6804FFC3 61804ZZEC3 61804ZZC3 618042ZC3 61804.2ZC3 61804KDDC3 61804DDC3 618042ZRC3 61804FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 32mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 4000 kN |
| Static load | 2640 kN |
| Max speed | 22000 rpm |
| da min | 22mm |
| Da max | 30mm |
| ra max | 0.3mm |
| Weight | 0.019 kg |
