SKU: 6803-ZZE/C3-NACHI

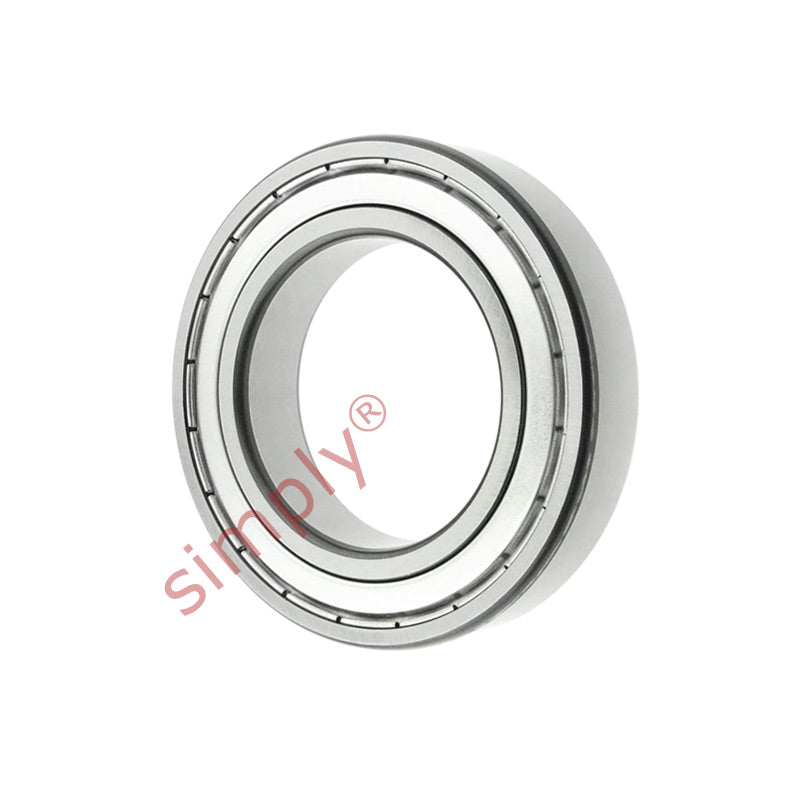

NACHI 6803ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 17x26x5mm
NACHI 6803ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 17x26x5mm
Equivalent to: 6803ZZC3 68032ZC3 6803.2ZC3 6803KDDC3 6803DDC3 68032ZRC3 6803FFC3 61803ZZEC3 61803ZZC3 618032ZC3 61803.2ZC3 61803KDDC3 61803DDC3 618032ZRC3 61803FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 26mm |
| Width B | 5mm |
| Min radius r | 0.3mm |
| Dynamic load | 2630 kN |
| Static load | 1570 kN |
| Max speed | 26000 rpm |
| da min | 19mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Weight | 0.008 kg |
