SKU: 6803-2NSE/C3-NACHI

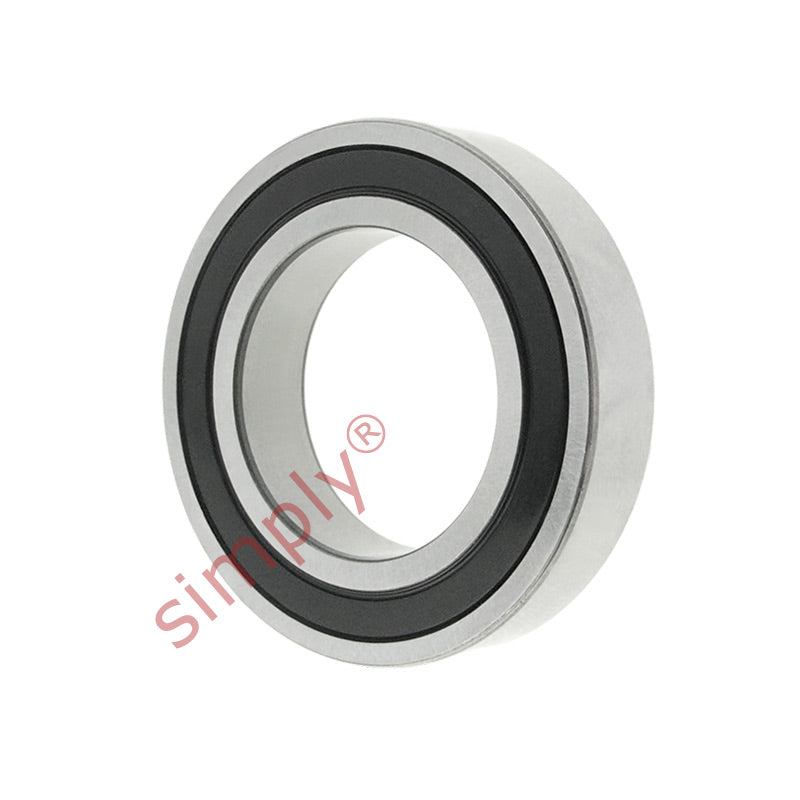

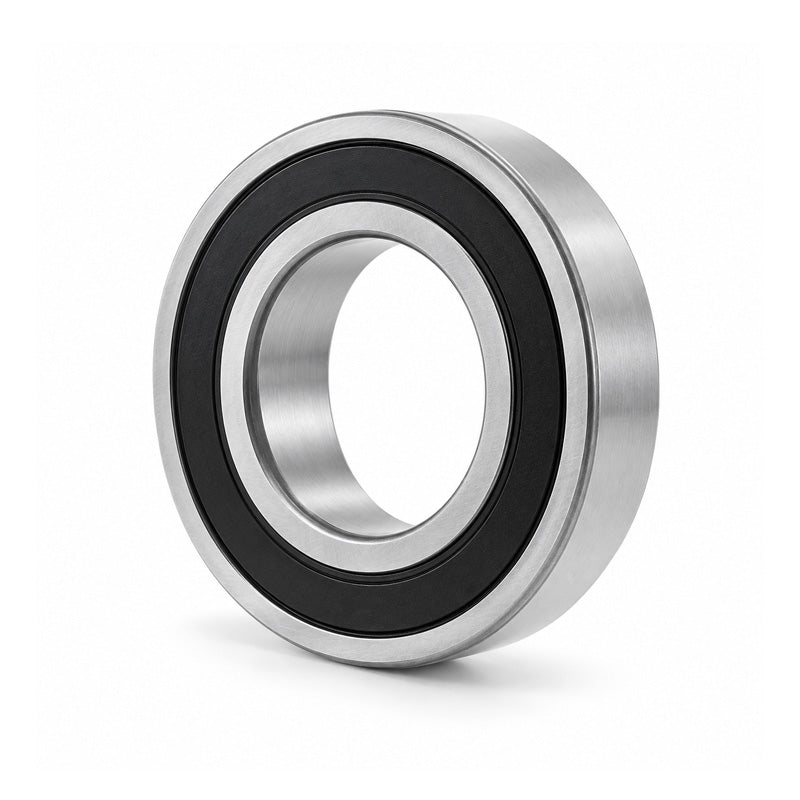

NACHI 68032NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 17x26x5mm
NACHI 68032NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 17x26x5mm
Equivalent to: 6803NSEC3 6803DUC3 6803RSC3 6803RSHC3 6803PC3 6803RSRC3 6803LUC3 61803NSEC3 61803DUC3 61803RSC3 61803RSHC3 61803PC3 61803RSRC3 61803LUC3 6803DDUC3 68032RSC3 68032RS1C3 68032RSHC3 6803PPC3 68032RSRC3 6803LLUC3 618032NSEC3 61803DDUC3 618032RSC3 618032RS1C3 618032RSHC3 61803PPC3 618032RSRC3 61803LLUC3
Out of stock
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 26mm |
| Width B | 5mm |
| Min radius r | 0.3mm |
| Dynamic load | 2630 kN |
| Static load | 1570 kN |
| Max speed | 26000 rpm |
| da min | 19mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Weight | 0.008 kg |
