SKU: 6800VVC3-NSK

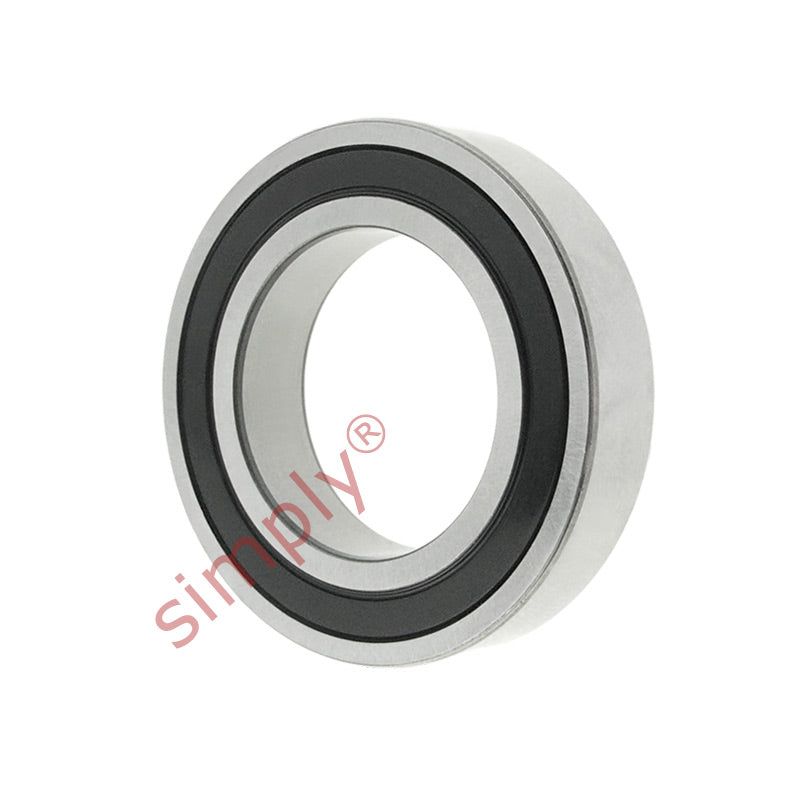

NSK 6800VVC3 Thin Section Non Contact Rubber Sealed Deep Groove Ball Bearing 10x19x5mm
NSK 6800VVC3 Thin Section Non Contact Rubber Sealed Deep Groove Ball Bearing 10x19x5mm
Equivalent to: 61800VVC3
Out of stock
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| d | 10mm |
|---|---|
| D | 19mm |
| B | 5mm |
| r min | 0.3mm |
| Dynamic load Cr | 1720 N (175 kgf) |
| Static load Cor | 840 N (86 kgf) |
| Factor | 14.8 |
| Speed in grease | 34000 rpm |
| Speed in oil | 40000 rpm |
| Weight | 0.005 kg |
