SKU: 6410-NR-C3-FAG

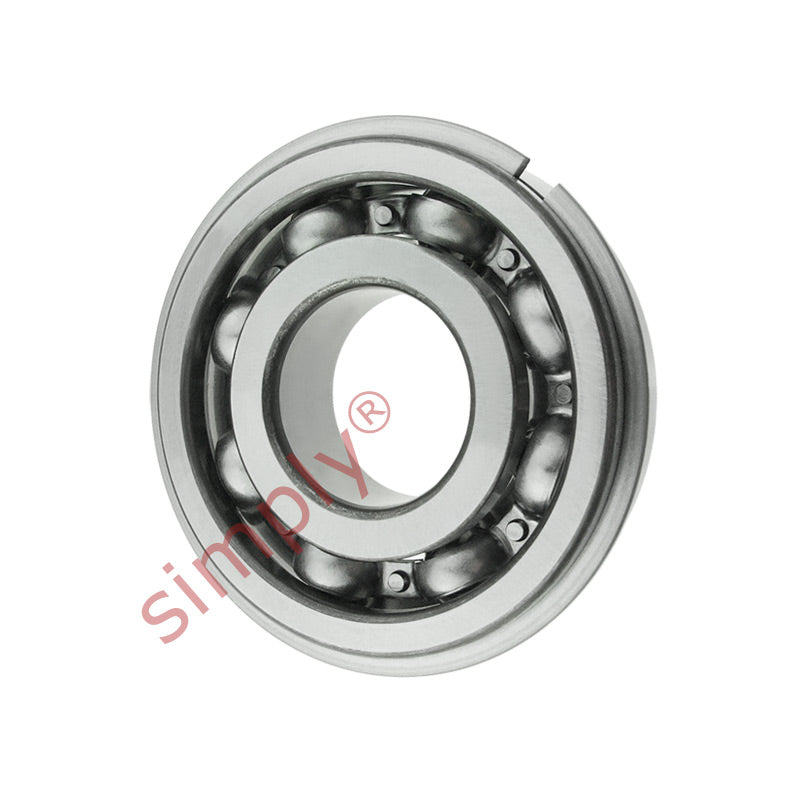

FAG 6410NRC3 Deep Groove Ball Bearing with Snap Ring 50x130x31mm
FAG 6410NRC3 Deep Groove Ball Bearing with Snap Ring 50x130x31mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dyamic load C | 87.1 kN |
| Static load Co | 52 kN |
| Fatigue load limit Pu | 2.2 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 7500 rpm |
| Mass | 1.9 kg |
| d1 | 75.5mm |
| d2 | 104mm |
| r1r2 min | 2.1mm |
| da min | 64 |
