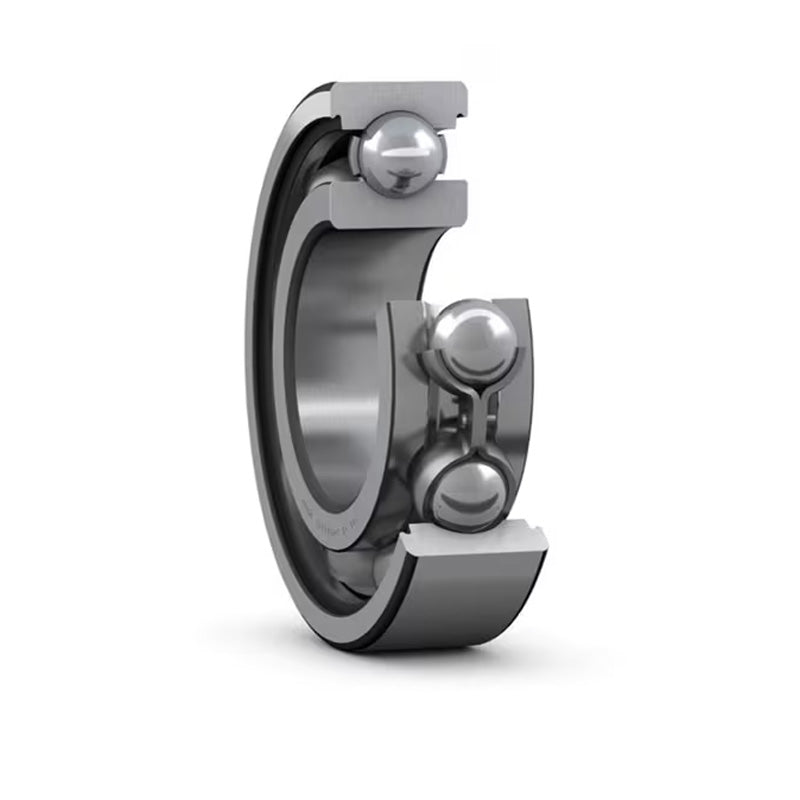

SKF 6348M Open Deep Groove Ball Bearing 240x500x95mm
SKF 6348M Open Deep Groove Ball Bearing 240x500x95mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 240mm
- Outside Diameter:
- 500mm
- Width:
- 95mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 240mm |
|---|---|
| D | 500mm |
| B | 95mm |
| Dynamic load | 442 kN |
| Static load | 585 kN |
| Fatigue load limit Pu | 12.9 kN |
| Reference speed | 2600 rpm |
| Limiting speed | 2400 rpm |
| Weight | 92.5 kg |
| d1 | 330mm |
| D1 | 411mm |
| D2 | 5mm |
| r1r2 min | 260mm |
| da min | 480mm |
| Da max | 4mm |
| ra max | 0.03mm |
| Calculation factor kr | 15 |
| Calculation factor Cor | N/A |
