SKU: 634-2Z/C3-SKF

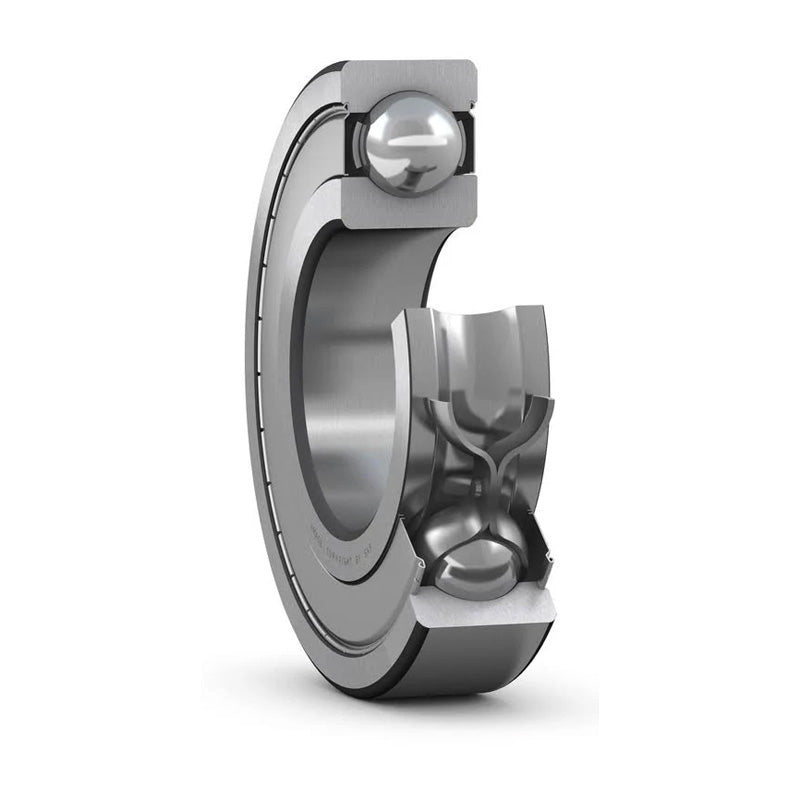

SKF 6342ZC3 Metal Shielded Deep Groove Ball Bearing 4x16x5mm
SKF 6342ZC3 Metal Shielded Deep Groove Ball Bearing 4x16x5mm
Equivalent to: 634ZZEC3 634ZZC3 634.2ZC3 634KDDC3 634DDC3 6342ZRC3 634FFC3
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 4mm |
|---|---|
| D | 16mm |
| B | 5mm |
| Dynamic load C | 1.11 kN |
| Static load Co | 0.38 kN |
| Fatigue load limit Pu | 0.016 kN |
| Reference speed | 95000 rpm |
| Limiting speed | 48000 rpm |
| Weight | 0.0054 kg |
| d1 | 8.4mm |
| d2 | 0mm |
| D2 | 13.3mm |
| r1r2 min | 0.3mm |
| da min | 6.4mm |
| da max | 0mm |
| Da max | 13.6mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 8.4 |
