SKU: 6330M/C4-SKF

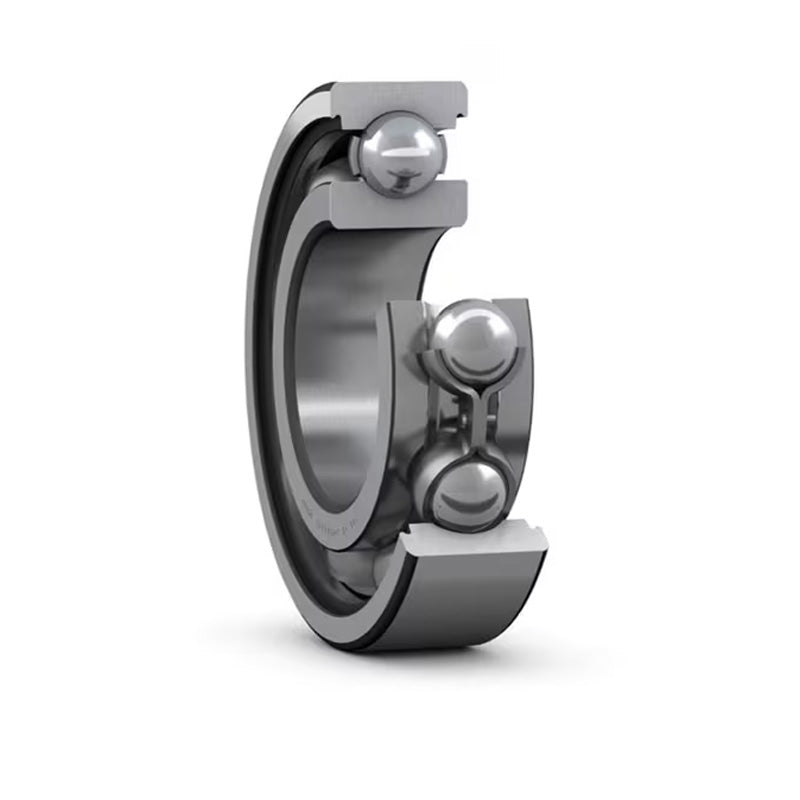

SKF 6330MC4 Open Deep Groove Ball Bearing 150x320x65mm
SKF 6330MC4 Open Deep Groove Ball Bearing 150x320x65mm
Regular price
€2.630,78
ex VAT
Regular price
Sale price
€2.630,78
ex VAT
In stock
Price Break
4+
€2.003,06
10+
€1.890,53
20+
€1.868,02
30+
€1.845,52
50+
€1.823,01
75+
€1.800,50
100+
€1.687,97
200+
€1.665,47
250+
€1.642,96
500+
€1.620,45
1000+
€1.575,44
Quantity
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 320mm
- Width:
- 65mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 150mm |
|---|---|
| D | 320mm |
| B | 65mm |
| Dynamic load | 276 kN |
| Static load | 285 kn |
| Fatigue load limit Pu | 7.8 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 4000 rpm |
| Weight | 26 kg |
| d1 | 206mm |
| D1 | 263mm |
| D2 | n/amm |
| r1r2 min | 4mm |
| da min | 167mm |
| Da max | 303mm |
| ra max | 3mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 14 |
