SKU: 6319/HC5C3-SKF

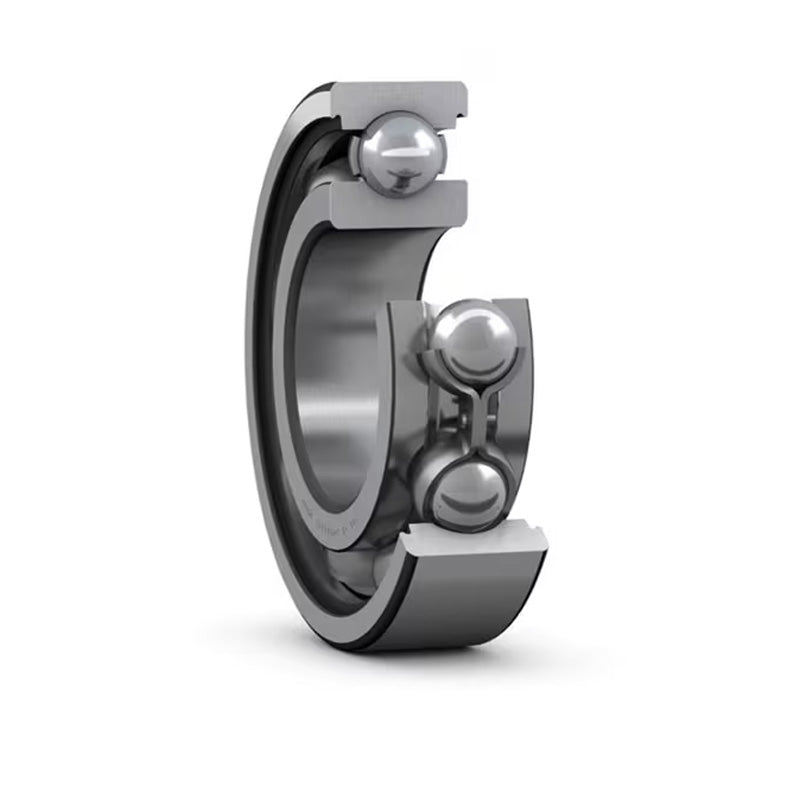

SKF 6319HC5C3 Hybrid Ball Bearing Open Type 95x200x45mm

Name: SKF 6319HC5C3 Hybrid Ball Bearing Open Type 95x200x45mm
Brand: SKF
SKU: 6319/HC5C3-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Life Hybrid Deep Groove Ball Bearings: Special application bearings, the outer and inner races are made form bearing steel and the rolling elements are made from Silicon Nitride (SiN4) In addition to being excellent electrical insulators hybrid bearings have a higher speed capacity and longer service life that normal steel only bearings.
Benefits: Electrically insulated, sealed for life, high life expectancy.

Brand / Quality:: SKF - High Quality
Inside Diameter:: 95mm
Outside Diameter:: 200mm
Width:: 45mm
Seals / Shields:: None
Clearance:: C5

Technical

d	95mm
D	200mm
B	45mm
Dynamic load Cr	159 kN
Static load Cor	118 kN
Fatigue load limit	4.15 kN
Reference speed	9500 rpm
Limiting speed	5300 rpm
Weight	4.9 kg
d1	121mm
D1	172mm
r1r2 min	3mm
da min	109mm
Da max	186mm
ra max	2.5mm
fo	13
