SKU: 6316-2NK/C3-NACHI

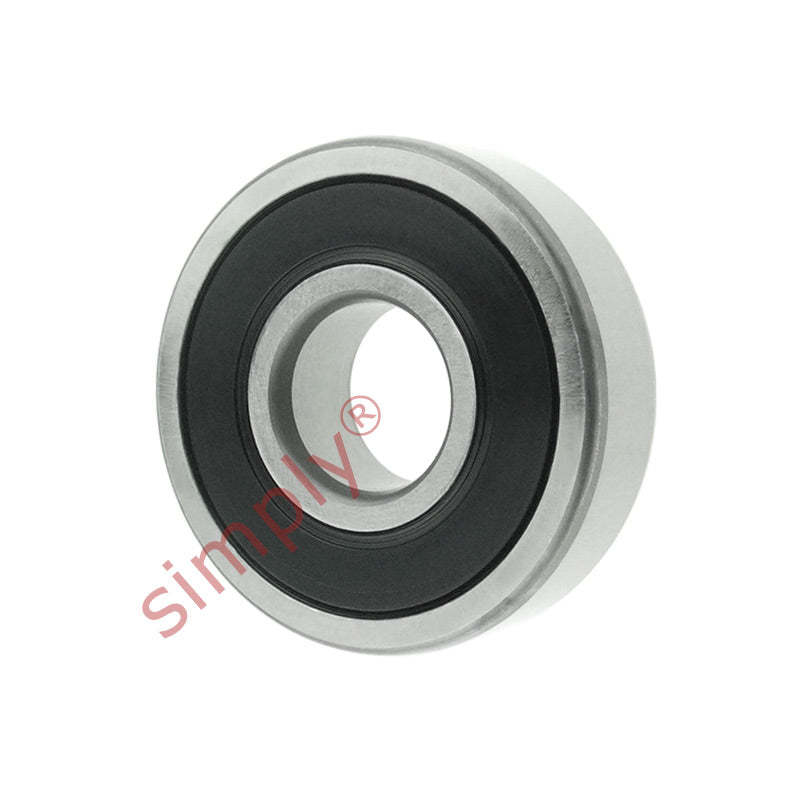

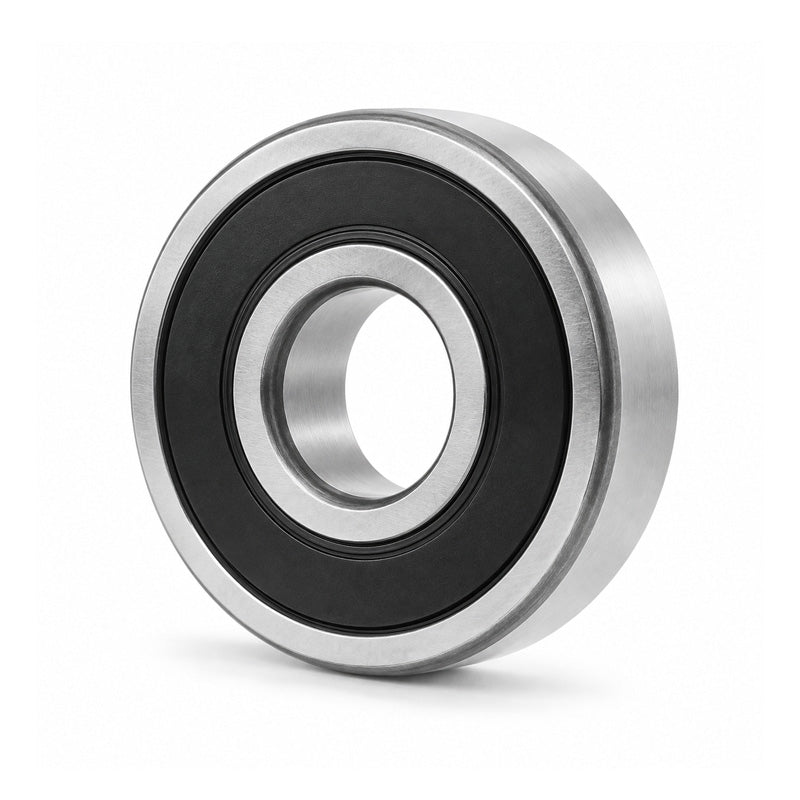

NACHI 63162NKC3 Non Contact Low Friction Sealed Deep Groove Ball Bearing 80x170x39mm
NACHI 63162NKC3 Non Contact Low Friction Sealed Deep Groove Ball Bearing 80x170x39mm
Equivalent to: 6316NKC3
Out of stock
Description
Description
|
NACHI Non-contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two non-contact rubber seals to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation, good grease sealing, good protection against dust, low friction. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 80mm |
|---|---|
| Outside Diameter D | 170mm |
| Width B | 39mm |
| Min radius r | 2.1mm |
| Dynamic load | 123000 kN |
| Static load | 86500 kN |
| Max speed | 4000 rpm |
| da min | 92mm |
| Da max | 158mm |
| ra max | 2mm |
| Weight | 3.59 kg |
