SKU: 6306-2RSL/C3-SKF

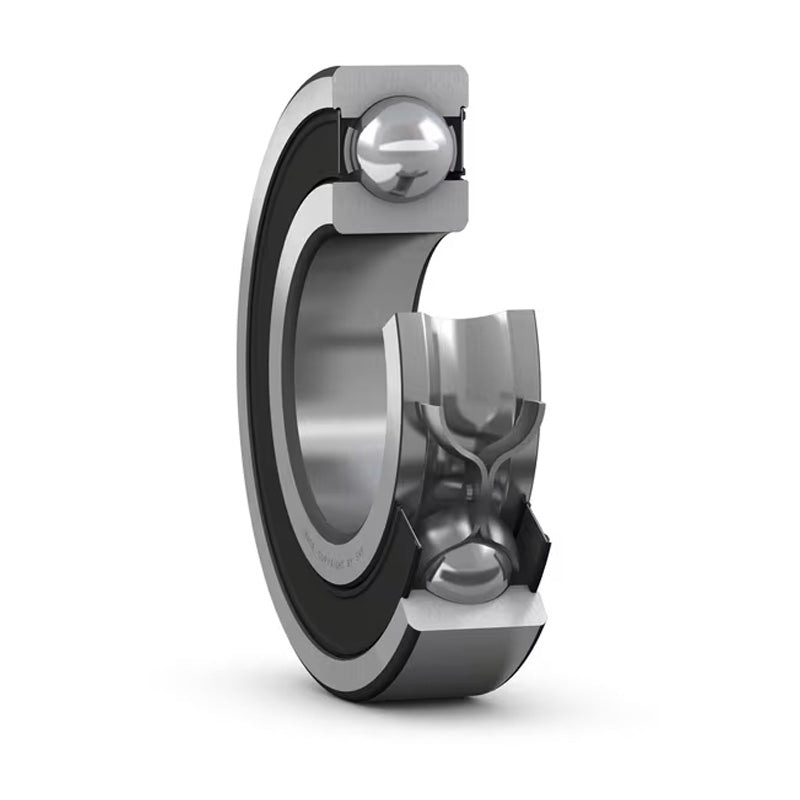

SKF 63062RSLC3 Deep Groove Ball Bearing with Two Low Friction Rubber Seals 30x72x19mm
Equivalent to: 63062LFSC3 63062RSL
Out of stock
Share this product
Description
|
RSL Range Deep Groove Ball Bearings: RSL series bearings have low friction acrylonitrile butadiene rubber steel reinforced seals fitted which form an extremely narrow gap between the seal and the cylindrical inner race surface. Being a practically non contacting they give the advantage of having a lower starting torque and rolling resistance in operation. Ideally suited to applications where ease of initial rotation is required they are equally at home in place of standard rubber sealed bearings and when fitted offer slight reductions in energy usage. They can be used at temperature from -40 to + 100 C or 120C for brief periods. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load C | 29.6 kN |
| Static load Co | 16 kN |
| Fatigue load limit Pu | 0.67 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 6300 rpm |
| Weight | 0.35 kg |
| d1 | 44.6mm |
| D2 | 61.9mm |
| r1r2 min | 1.1mm |
| da min | 37mm |
| Da max | 65mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
