SKU: 63005-2RS1/C3-SKF

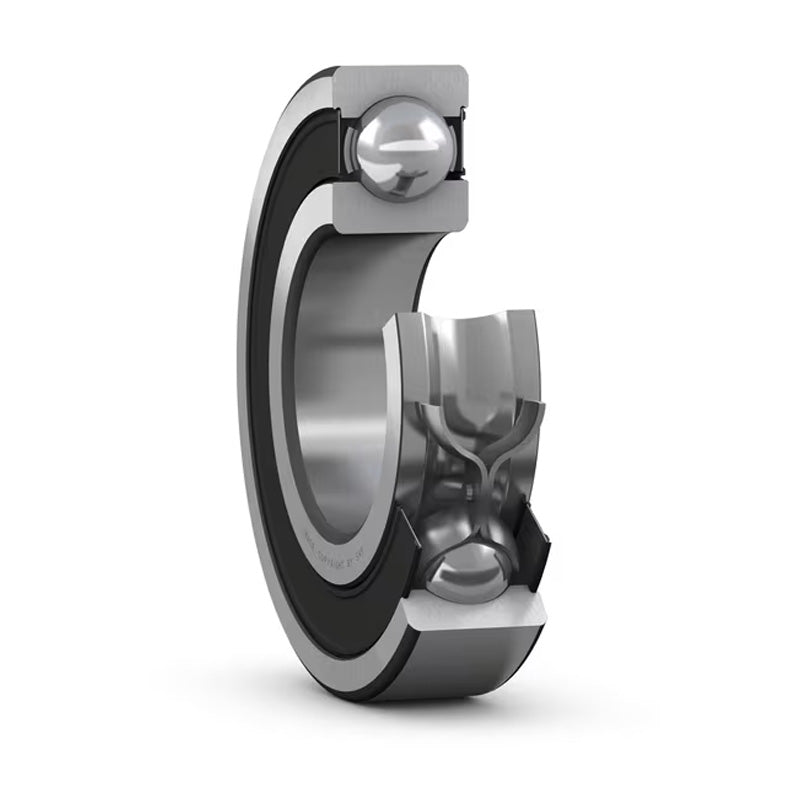

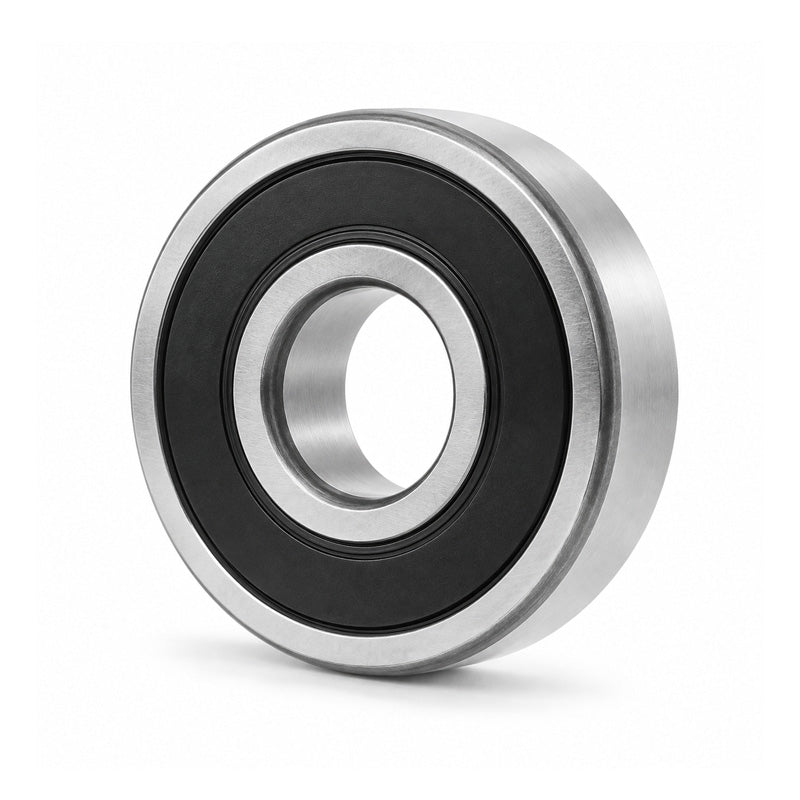

SKF 630052RS1C3 Rubber Sealed Deep Groove Ball Bearing 25x47x16mm
SKF 630052RS1C3 Rubber Sealed Deep Groove Ball Bearing 25x47x16mm
Equivalent to: 63005NSEC3 63005DUC3 63005RSC3 63005RSHC3 63005PC3 63005RSRC3 63005LUC3 630052NSEC3 63005DDUC3 630052RSC3 630052RSHC3 63005PPC3 630052RSRC3 63005LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 16mm |
| Dynamic load C | 11.2 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.275 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.1 kg |
| d1 | 32mm |
| D2 | 42.2mm |
| r1r2 min | 0.6mm |
| da min | 29.2mm |
| Da max | 43.8mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
