SKU: 628/9-2RSR-C3-FAG

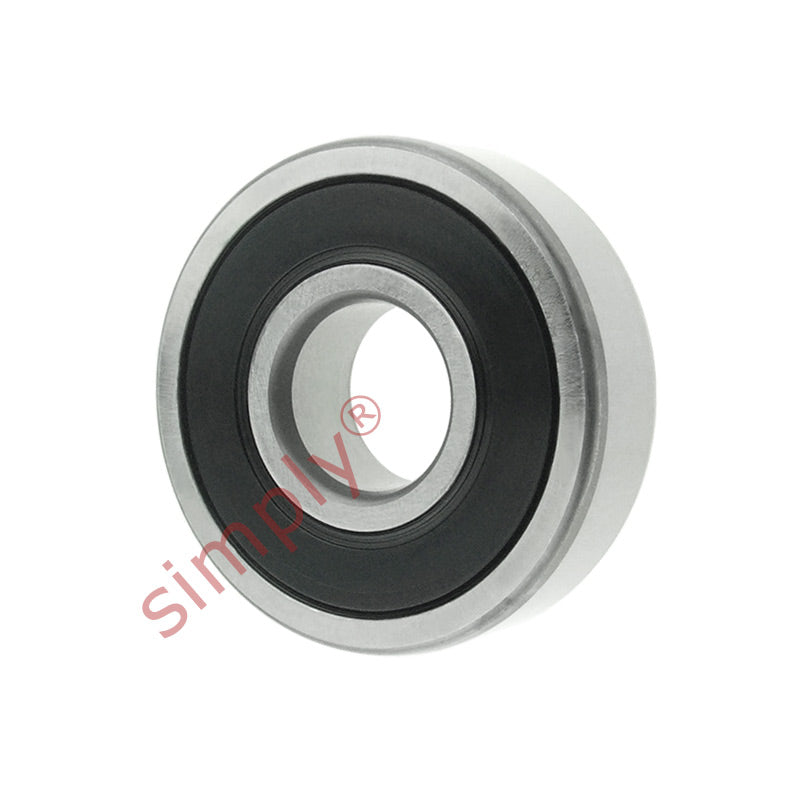

FAG 628/92RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x17x5mm
FAG 628/92RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x17x5mm
Equivalent to: 6289RSC3 62892RSC3 6289DDUC3 6289DUC3
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 17mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 9mm |
|---|---|
| D | 17mm |
| B | 5mm |
| Dynamic load C | 1.43 kN |
| Static load Co | 0.64 kN |
| Fatigue load limit Pu | 0.027 kN |
| Reference speed | 85000 rpm |
| Limiting speed | 24000 rpm |
| Mass | 0.0043 kg |
| d2 | 10.6mm |
| D2 | 15.5mm |
| r1r2 min | 0.2mm |
| da min | 10.4 |
