SKU: 62309-2RSR-C3-FAG

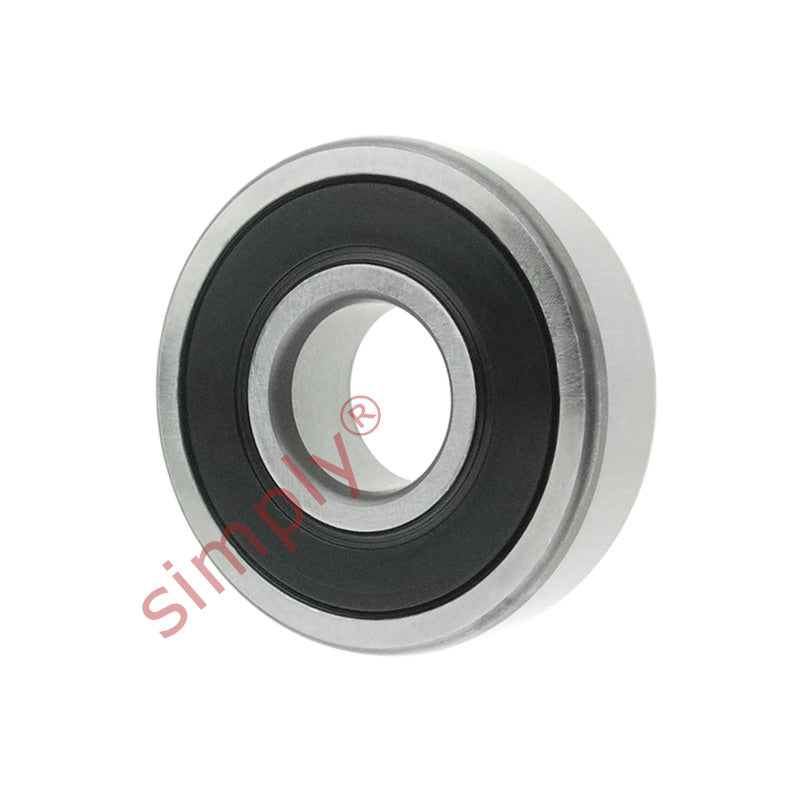

FAG 623092RSRC3 Rubber Sealed Deep Groove Ball Bearing 45x100x36mm
FAG 623092RSRC3 Rubber Sealed Deep Groove Ball Bearing 45x100x36mm
Equivalent to: 62309NSEC3 62309DUC3 62309RSC3 62309RSHC3 62309PC3 62309RSRC3 62309LUC3 623092NSEC3 62309DDUC3 623092RSC3 623092RS1C3 623092RSHC3 62309PPC3 62309LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 36mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 36mm |
| Dynamic load C | 52.7 kN |
| Static load Co | 31.5 kN |
| Fatigue load limit Pu | 1.34 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 4500 rpm |
| Mass | 1.15 kg |
| d1 | 62.2mm |
| D2 | 86.7mm |
| r1r2 min | 1.5mm |
| da min | 54 |
