SKU: 6224-2Z/C3-SKF

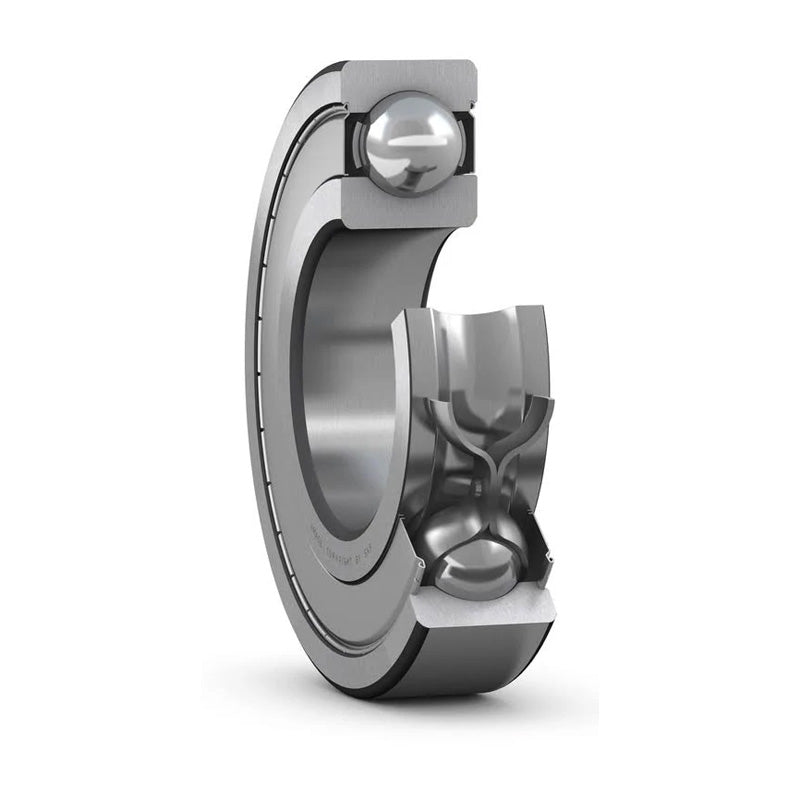

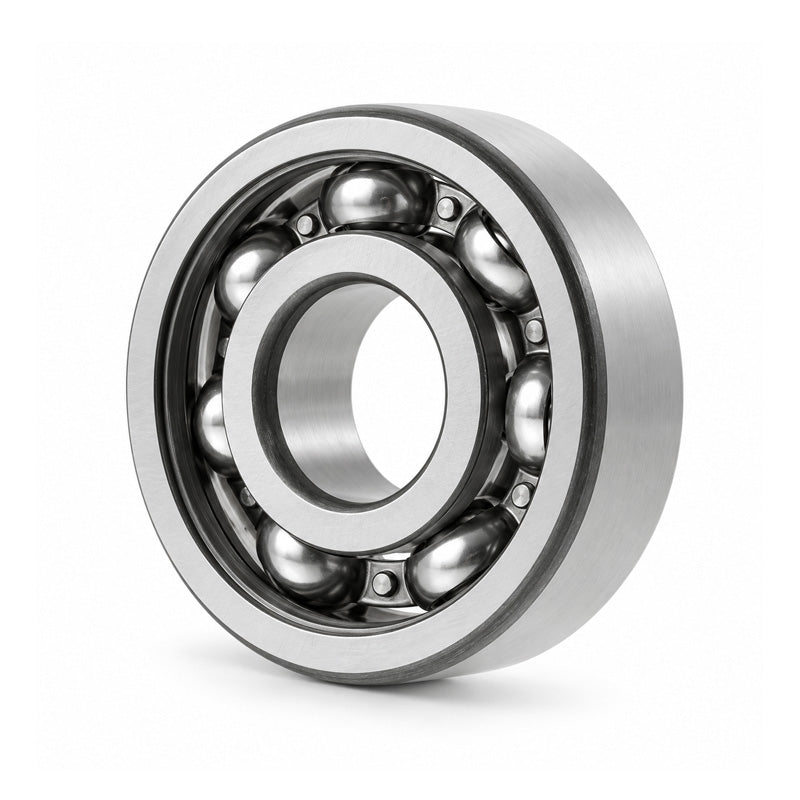

SKF 62242ZC3 Metal Shielded Deep Groove Ball Bearing 120x215x40mm
SKF 62242ZC3 Metal Shielded Deep Groove Ball Bearing 120x215x40mm
Equivalent to: 6224ZZEC3 6224ZZC3 6224.2ZC3 6224KDDC3 6224DDC3 62242ZRC3 6224FFC3
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 40mm |
| Dynamic load C | 146 kN |
| Static load Co | 118 kN |
| Fatigue load limit Pu | 3.9 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 3200 rpm |
| Weight | 5.15 kg |
| d1 | 151mm |
| d2 | 0mm |
| D2 | 189mm |
| r1r2 min | 2.1mm |
| da min | 132mm |
| da max | 0mm |
| Da max | 203mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
