SKU: 6219-2Z/VA228-SKF

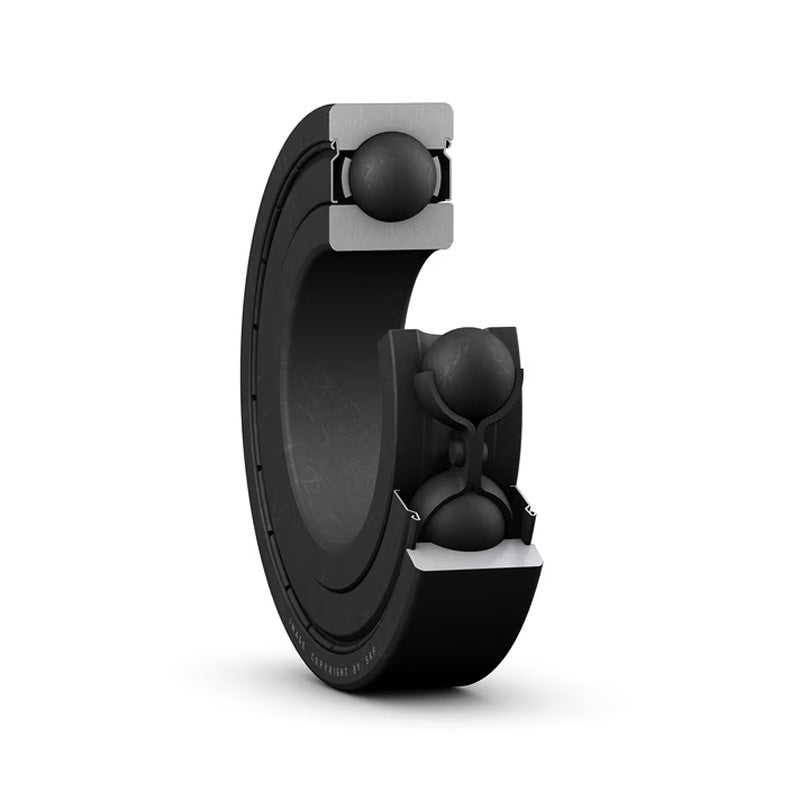

SKF 62192ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 95x170x32mm
SKF 62192ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 95x170x32mm
Out of stock
Share this product
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 32mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 32mm |
| d1 | 118mm |
| D2 | 152mm |
| r1r2 | 2.1mm |
| Basic load rating Co | 81.5 kN |
| Weight | 2.45 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
