SKU: 6214-NR-FAG

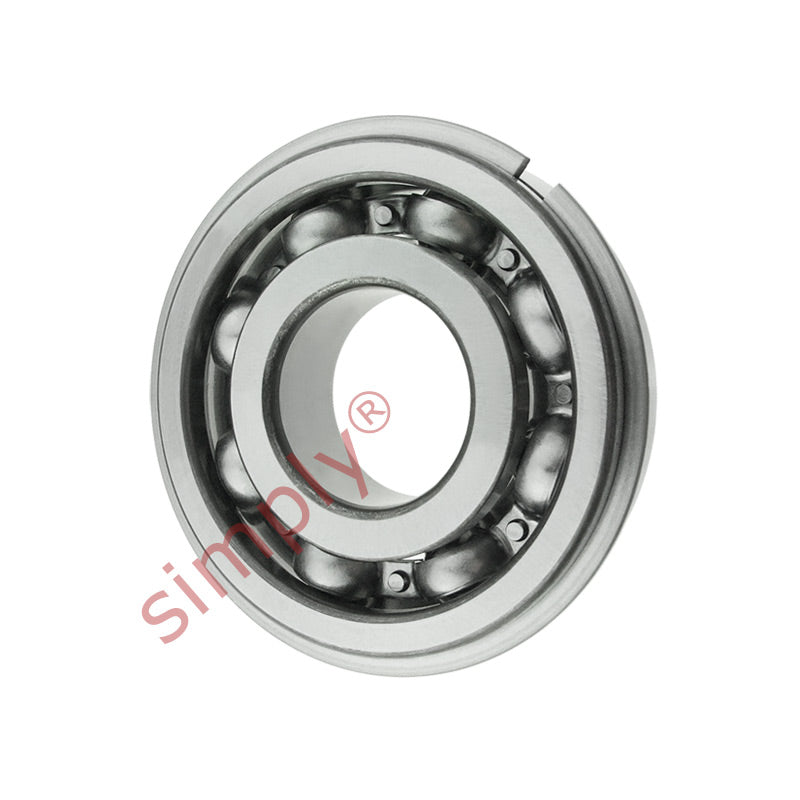

FAG 6214NR Deep Groove Ball Bearing with Snap Ring 70x125x24mm
FAG 6214NR Deep Groove Ball Bearing with Snap Ring 70x125x24mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| B | 24mm |
| Dyamic load C | 63.7 kN |
| Static load Co | 45 kN |
| Fatigue load limit Pu | 1.9 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 7000 rpm |
| Mass | 1.05 kg |
| d1 | 87mm |
| d2 | 106mm |
| D2 | 111mm |
| r1r2 min | 1.5mm |
| da min | 79 |
