SKU: 6204-2RSR-C3-LHT23-FAG

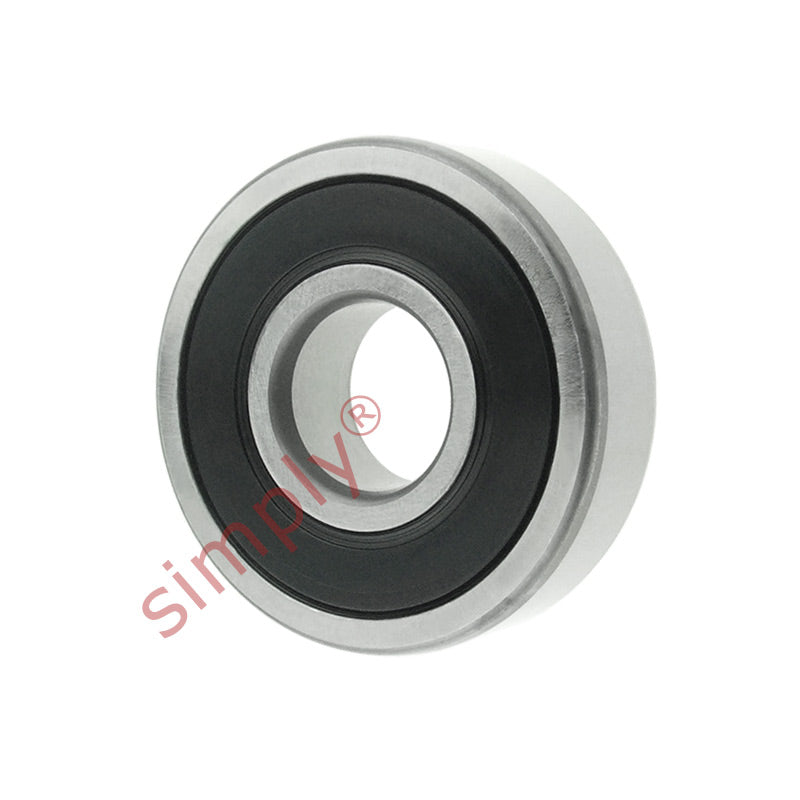

FAG 62042RSRC3LHT23 Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
FAG 62042RSRC3LHT23 Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
Equivalent to: 6204RSC3-LHT23 62042RSC3-LHT23 6204DDUC3-LHT23 6204DUC3-LHT23
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load C | 13.5 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.28 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 10000 rpm |
| Mass | 0.13 kg |
| d1 | 28.8mm |
| D2 | 40.6mm |
| r1r2 min | 1mm |
| da min | 25.6 |
