SKU: 6202-2RSL/C4WTF7VT901-SKF

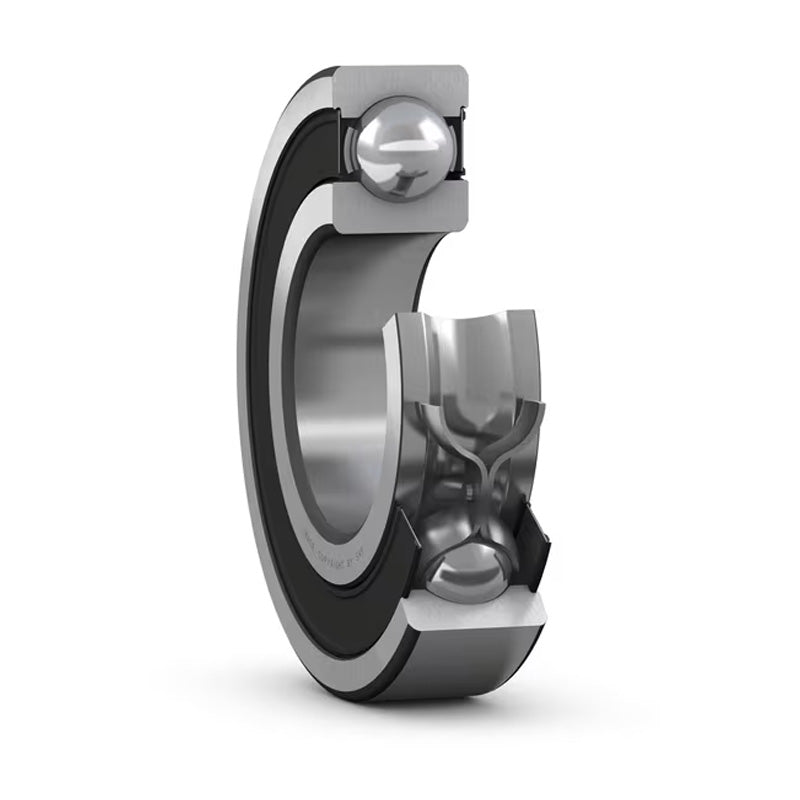

SKF 62022RSLC4WTF7VT901 Rubber Sealed Deep Groove Ball Bearing 15x35x11mm
SKF 62022RSLC4WTF7VT901 Rubber Sealed Deep Groove Ball Bearing 15x35x11mm
Regular price
€14,11
ex VAT
Regular price
Sale price
€14,11
ex VAT
In stock
Price Break
4+
€10,74
10+
€10,14
20+
€10,02
30+
€9,90
50+
€9,78
75+
€9,66
100+
€9,05
200+
€8,93
250+
€8,81
500+
€8,69
1000+
€8,45
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dynamic load C | 8.06 kN |
| Static load Co | 3.75 kN |
| Fatigue load limit Pu | 0.16 kN |
| Reference speed | 43000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.045 kg |
| d2 | 19.4mm |
| D2 | 30.4mm |
| r1r2 min | 0.6mm |
| da min | 19.2mm |
| da max | 19.4mm |
| Da max | 30.8mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 13 |
