SKU: 61915-2RS1/C3-SKF

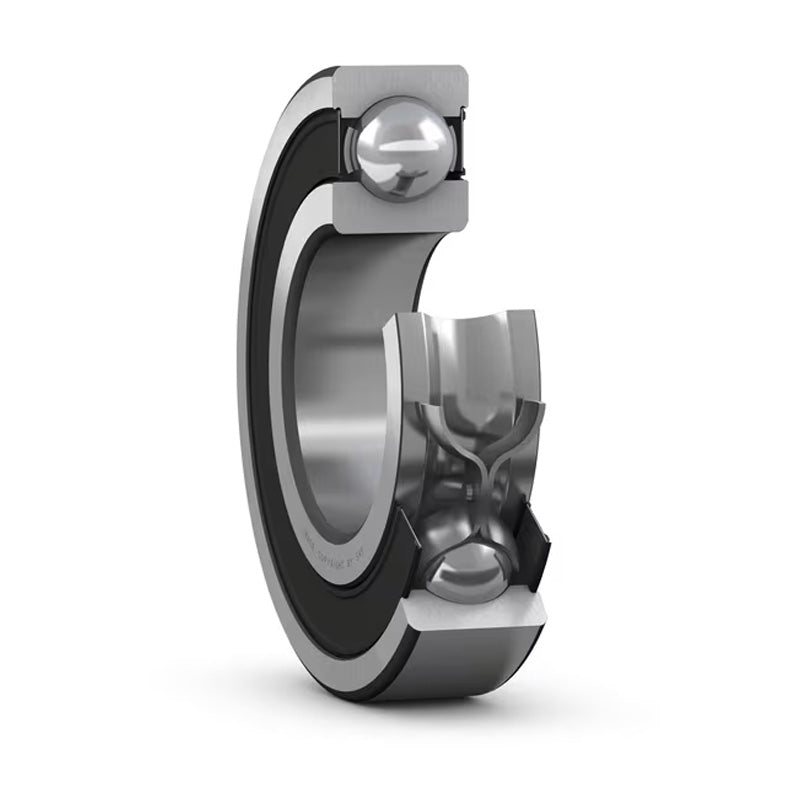

SKF 619152RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 75x105x16mm
Equivalent to: 61915NSEC3 61915DUC3 61915RSC3 61915RSHC3 61915PC3 61915RSRC3 61915LUC3 6915NSEC3 6915DUC3 6915RSC3 6915RSHC3 6915PC3 6915RSRC3 6915LUC3 619152NSEC3 61915DDUC3 619152RSC3 619152RSHC3 61915PPC3 619152RSRC3 61915LLU 69152NSEC3 6915DDUC3 69152RSC3 69152RS1C3 69152RSHC3 6915PPC3 69152RSRC3 6915LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 105mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 75mm |
|---|---|
| D | 105mm |
| B | 16mm |
| Dynamic load C | 24.2 kN |
| Static load Co | 19.3 kN |
| Fatigue load limit Pu | 0.965 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 3600 rpm |
| Weight | 0.37 kg |
| d1 | 84.7mm |
| d2 | 98.3mm |
| r1r2 min | 1mm |
| da min | 79.6mm |
| Da max | 100mm |
| ra max | 1mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 14 |
