SKU: 61905-2RS1/C3-SKF

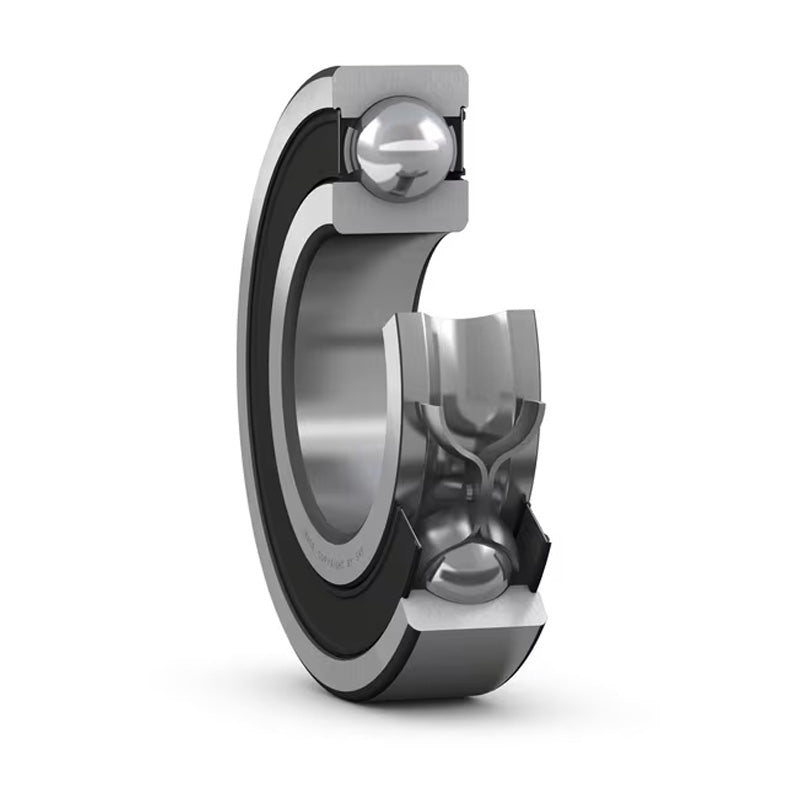

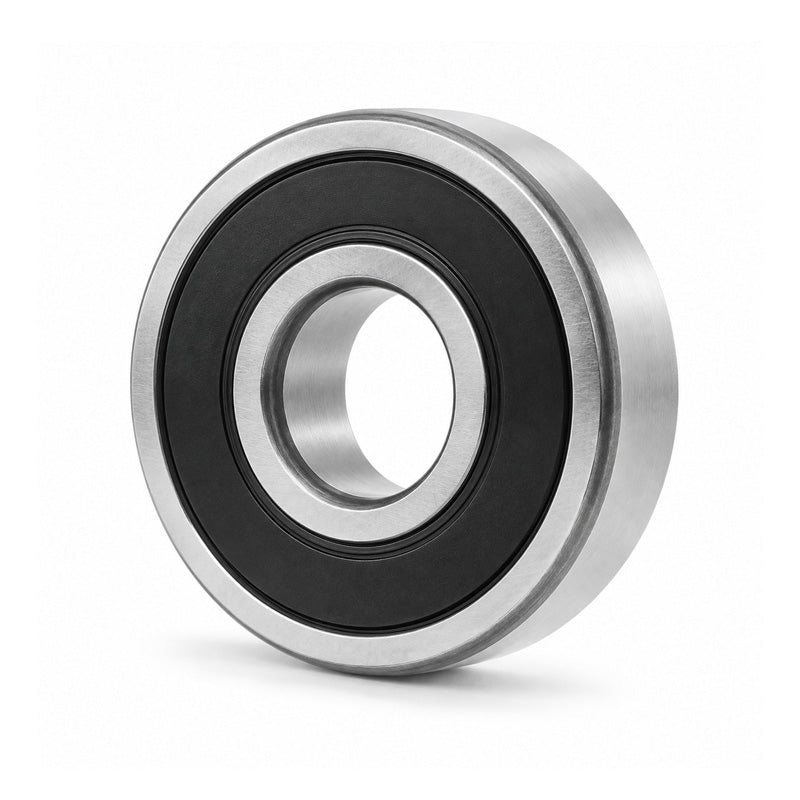

SKF 619052RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 25x42x9mm
Equivalent to: 61905NSEC3 61905DUC3 61905RSC3 61905RSHC3 61905PC3 61905RSRC3 61905LUC3 6905NSEC3 6905DUC3 6905RSC3 6905RSHC3 6905PC3 6905RSRC3 6905LUC3 619052NSEC3 61905DDUC3 619052RSC3 619052RSHC3 61905PPC3 619052RSRC3 61905LLU 69052NSEC3 6905DDUC3 69052RSC3 69052RS1C3 69052RSHC3 6905PPC3 69052RSRC3 6905LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 9mm |
| Dynamic load C | 7.02 kN |
| Static load Co | 4.3 kN |
| Fatigue load limit Pu | 0.193 kN |
| Reference speed | 36000 rpm |
| Limiting speed | 10000 rpm |
| Weight | 0.045 kg |
| d2 | 29.2mm |
| D2 | 37.8mm |
| r1r2 min | 0.3mm |
| da min | 27mm |
| da max | 29mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 15 |
