SKU: 61901-2Z/C3-SKF

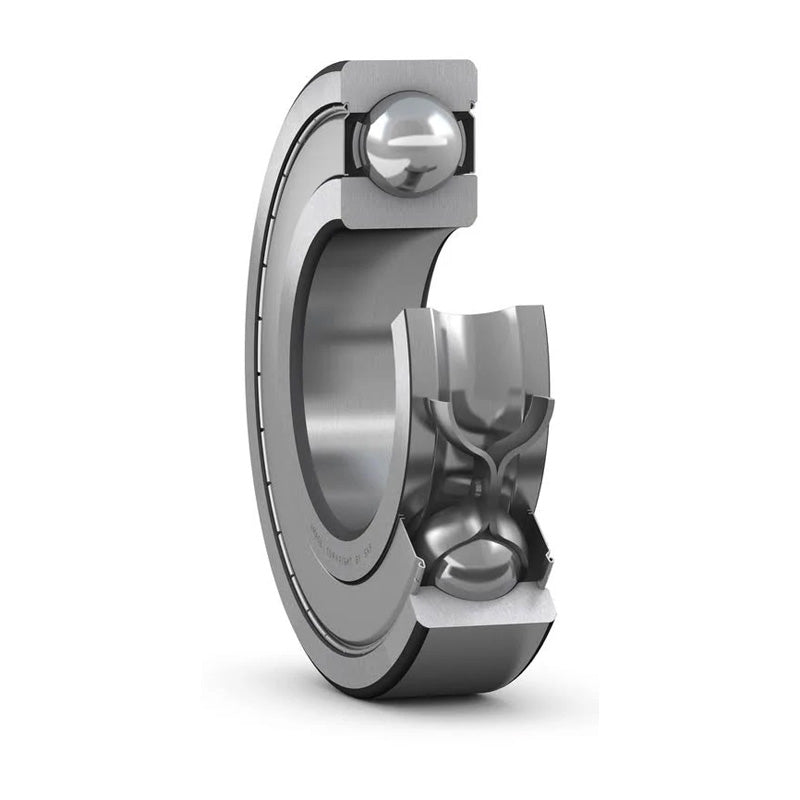

SKF 619012ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 12x24x6mm
Equivalent to: 61901ZZEC3 61901ZZC3 61901.2ZC3 61901KDDC3 61901DDC3 619012ZRC3 61901FFC3 6901ZZEC3 6901ZZC3 69012ZC3 6901.2ZC3 6901KDDC3 6901DDC3 69012ZRC3 6901FFC3
Out of stock
Share this product
Description
|
Metal Shielded Thin Section Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 6mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 6mm |
| Dynamic load C | 2.25 kN |
| Static load Co | 0.98 kN |
| Fatigue load limit Pu | 0.043 kN |
| Reference speed | 70000 rpm |
| Limiting speed | 32000 rpm |
| Weight | 0.011 kg |
| d1 | 15.5mm |
| d2 | 0mm |
| D2 | 21.4mm |
| r1r2 min | 0.3mm |
| da min | 14mm |
| da max | 0mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 9.7 |
