SKU: 619/560MA-SKF

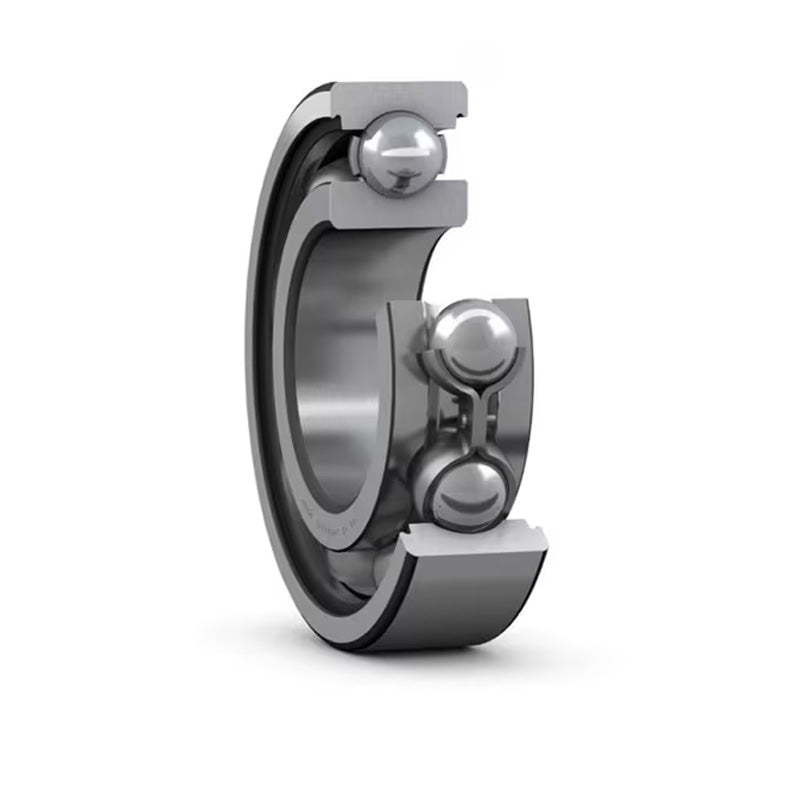

SKF 619/560MA Open Deep Groove Ball Bearing 560x750x85mm
SKF 619/560MA Open Deep Groove Ball Bearing 560x750x85mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 560mm
- Outside Diameter:
- 750mm
- Width:
- 85mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 560mm |
|---|---|
| D | 750mm |
| B | 85mm |
| Dynamic load | 494 kN |
| Static load | 980 kN |
| Fatigue load limit Pu | 16.3 kN |
| Reference speed | 1500 rpm |
| Limiting speed | 1200 rpm |
| Weight | 105 kg |
| d1 | 622mm |
| D1 | 688mm |
| D2 | 5mm |
| r1r2 min | 578mm |
| da min | 732mm |
| Da max | 4mm |
| ra max | 0.02mm |
| Calculation factor kr | 17 |
| Calculation factor Cor | N/A |
