SKU: 61826-2RS1/C3-SKF

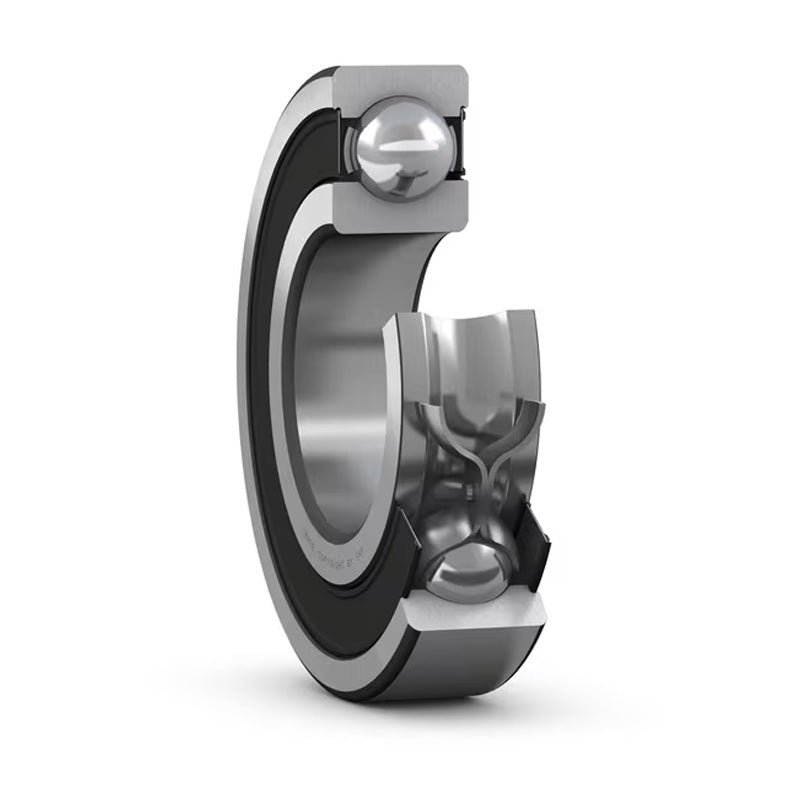

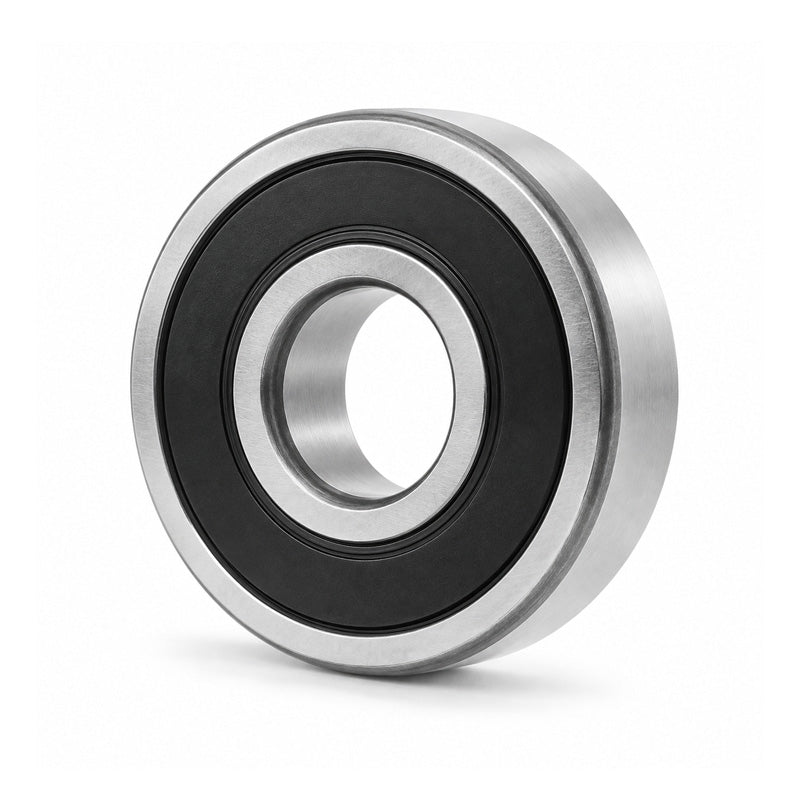

SKF 618262RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 130x165x18mm
Equivalent to: 61826NSEC3 61826DUC3 61826RSC3 61826RSHC3 61826PC3 61826RSRC3 61826LUC3 6826NSEC3 6826DUC3 6826RSC3 6826RSHC3 6826PC3 6826RSRC3 6826LUC3 618262NSEC3 61826DDUC3 618262RSC3 618262RSHC3 61826PPC3 618262RSRC3 61826LLU 68262NSEC3 6826DDUC3 68262RSC3 68262RS1C3 68262RSHC3 6826PPC3 68262RSRC3 6826LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 165mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 130mm |
|---|---|
| D | 165mm |
| B | 18mm |
| Dynamic load C | 37.7 kN |
| Static load Co | 43 kN |
| Fatigue load limit Pu | 1.6 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 2200 rpm |
| Weight | 0.93 kg |
| d2 | 137mm |
| D2 | 158mm |
| r1r2 min | 1.1mm |
| da min | 136mm |
| da max | 136mm |
| Da max | 159mm |
| ra max | 1mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 16 |
