SKU: 61818-2RZ/C3-SKF

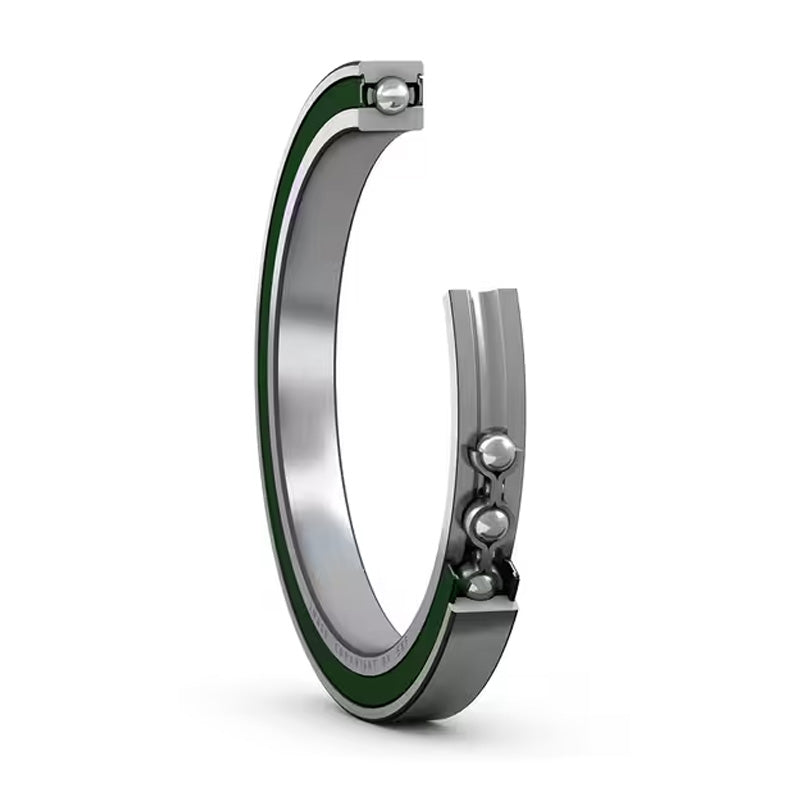

SKF 618182RZC3 Thin Section Deep Groove Ball Bearing with Two Low Friction Rubber Seals 90x115x13mm

SKF 618182RZC3 Thin Section Deep Groove Ball Bearing with Two Low Friction Rubber Seals 90x115x13mm

Equivalent to: 618182LFSC3 618182RZ

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d 90mm
D 115mm
B 13mm
Dynamic load C 19.5 kN
Static load Co 22 kN
Fatigue load limit Pu 0.915 kN
Reference speed 11000 rpm
Limiting speed 5600 rpm
Weight 0.28 kg
d1 98.2mm
D2 109mm
r1r2 min 1mm
da min 94.6mm
Da max 110mm
ra max 1mm
Calculation factor kr 0.015
Calculation factor f0 17
