SKU: 61809-2RS1/C3-SKF

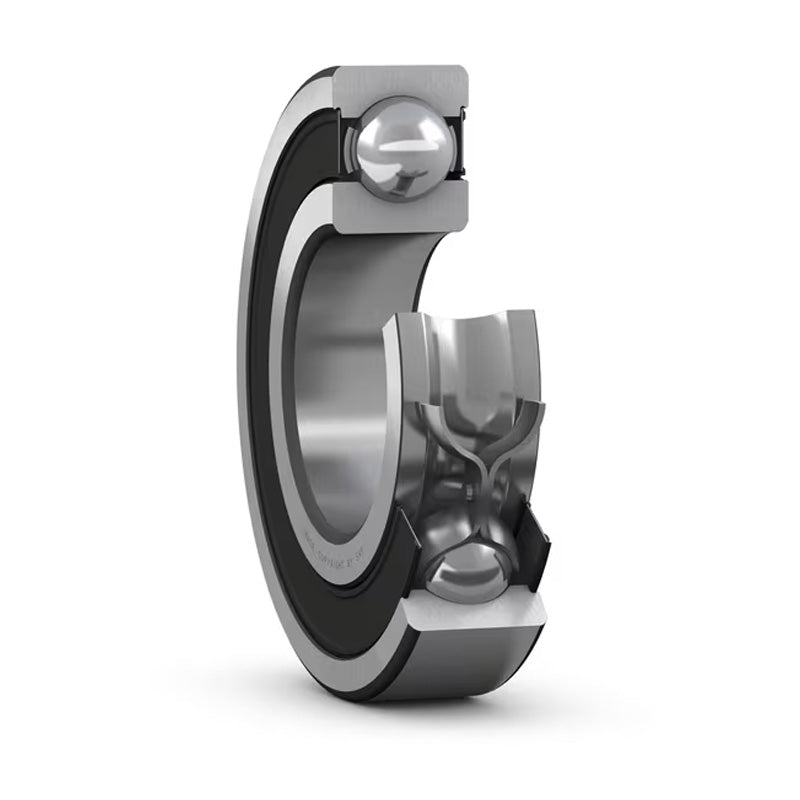

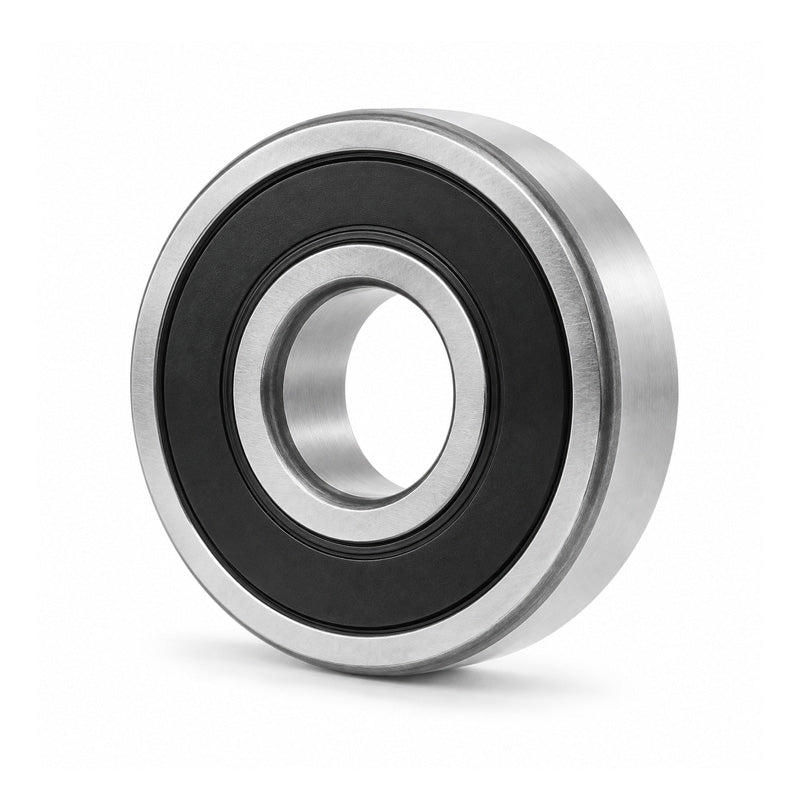

SKF 618092RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 45x58x7mm
Equivalent to: 61809NSEC3 61809DUC3 61809RSC3 61809RSHC3 61809PC3 61809RSRC3 61809LUC3 6809NSEC3 6809DUC3 6809RSC3 6809RSHC3 6809PC3 6809RSRC3 6809LUC3 618092NSEC3 61809DDUC3 618092RSC3 618092RSHC3 61809PPC3 618092RSRC3 61809LLU 68092NSEC3 6809DDUC3 68092RSC3 68092RS1C3 68092RSHC3 6809PPC3 68092RSRC3 6809LLUC3
Out of stock
Share this product
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 45mm |
|---|---|
| D | 58mm |
| B | 7mm |
| Dynamic load C | 6.63 kN |
| Static load Co | 6.1 kN |
| Fatigue load limit Pu | 0.26 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 6700 rpm |
| Weight | 0.04 kg |
| d1 | 49.1mm |
| D2 | 55.4mm |
| r1r2 min | 0.3mm |
| da min | 47mm |
| Da max | 56mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 17 |
