SKU: 61803-2RS1/C3-SKF

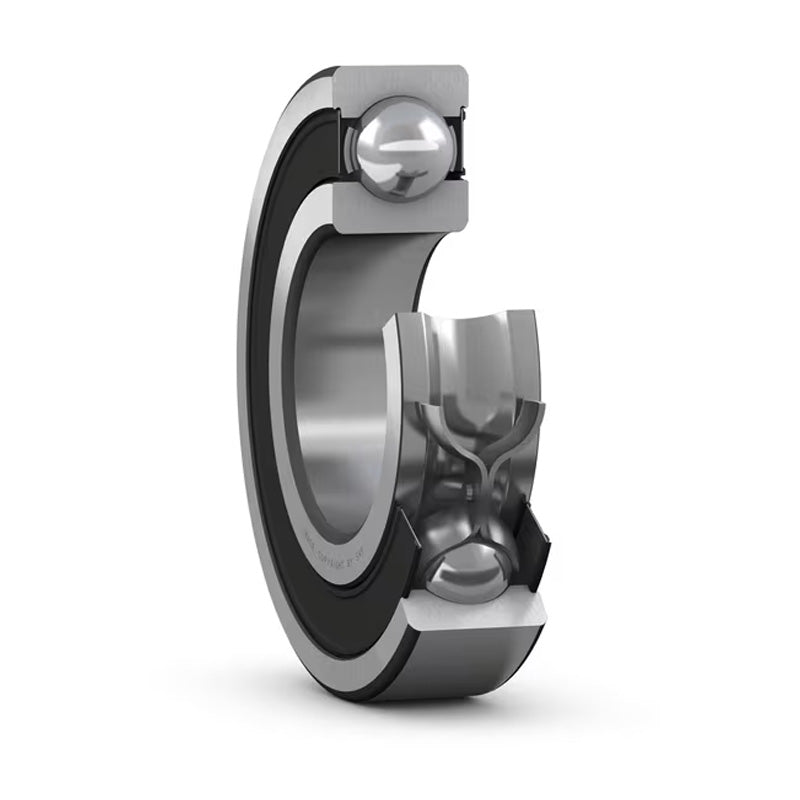

SKF 618032RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 17x26x5mm
Equivalent to: 61803NSEC3 61803DUC3 61803RSC3 61803RSHC3 61803PC3 61803RSRC3 61803LUC3 6803NSEC3 6803DUC3 6803RSC3 6803RSHC3 6803PC3 6803RSRC3 6803LUC3 618032NSEC3 61803DDUC3 618032RSC3 618032RSHC3 61803PPC3 618032RSRC3 61803LLU 68032NSEC3 6803DDUC3 68032RSC3 68032RS1C3 68032RSHC3 6803PPC3 68032RSRC3 6803LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 17mm |
|---|---|
| D | 26mm |
| B | 5mm |
| Dynamic load C | 1.68 kN |
| Static load Co | 0.93 kN |
| Fatigue load limit Pu | 0.039 kN |
| Reference speed | 56000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.164 kg |
| d2 | 19.3mm |
| D2 | 24.1mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| da max | 19.2mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 10 |
