SKU: 61802-2RS1/C3-SKF

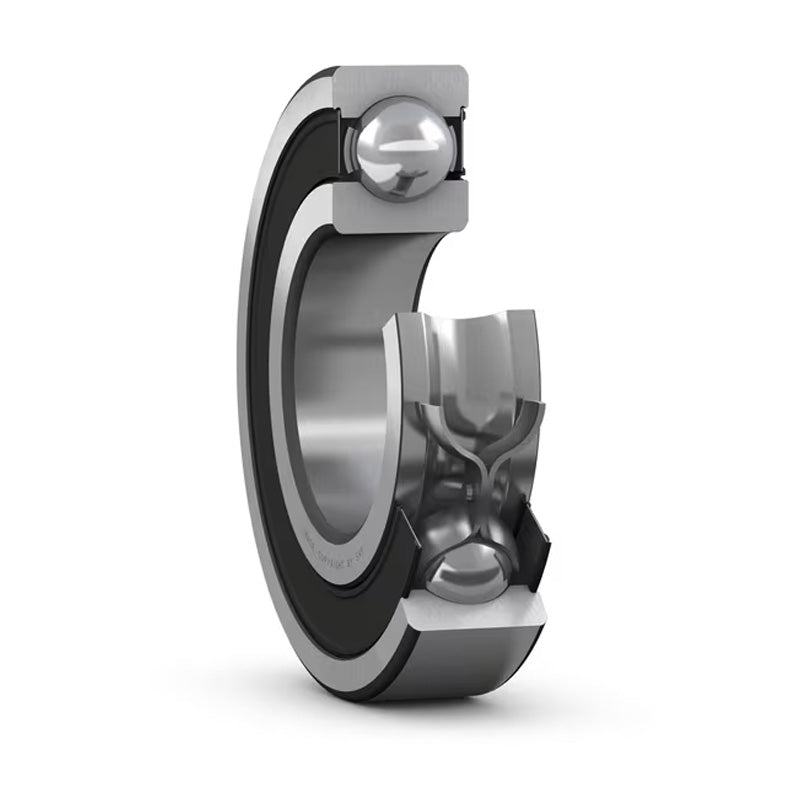

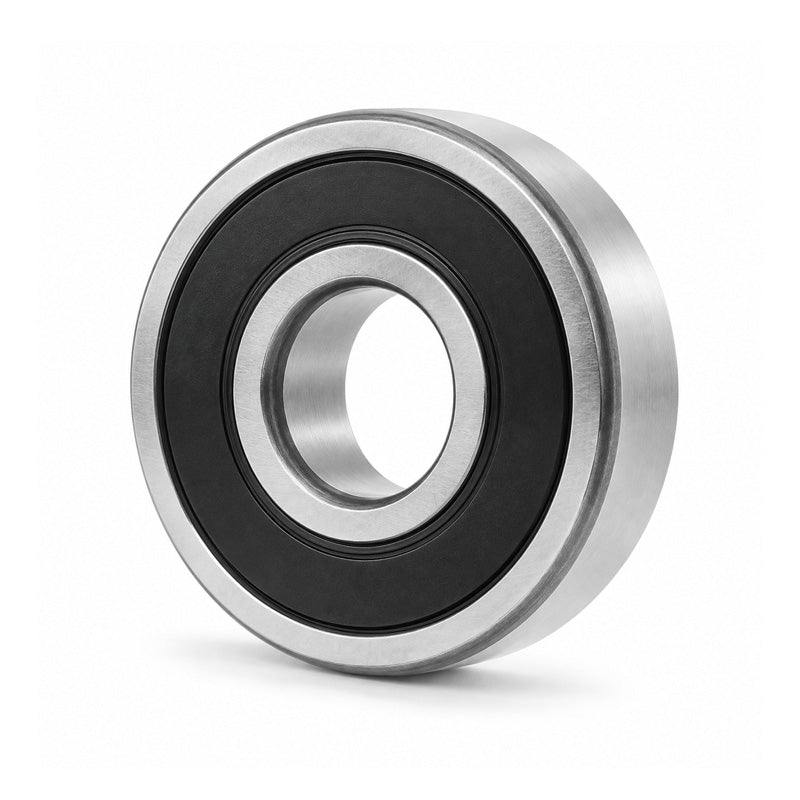

SKF 618022RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 15x24x5mm
Equivalent to: 61802NSEC3 61802DUC3 61802RSC3 61802RSHC3 61802PC3 61802RSRC3 61802LUC3 6802NSEC3 6802DUC3 6802RSC3 6802RSHC3 6802PC3 6802RSRC3 6802LUC3 618022NSEC3 61802DDUC3 618022RSC3 618022RSHC3 61802PPC3 618022RSRC3 61802LLU 68022NSEC3 6802DDUC3 68022RSC3 68022RS1C3 68022RSHC3 6802PPC3 68022RSRC3 6802LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 15mm |
|---|---|
| D | 24mm |
| B | 5mm |
| Dynamic load C | 1.56 kN |
| Static load Co | 0.8 kN |
| Fatigue load limit Pu | 0.034 kN |
| Reference speed | 60000 rpm |
| Limiting speed | 17000 rpm |
| Weight | 0.148 kg |
| d1 | 17.9mm |
| D2 | 22.1mm |
| r1r2 min | 0.3mm |
| da min | 17mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 10 |
