SKU: 61800-2RSR-C3-FAG

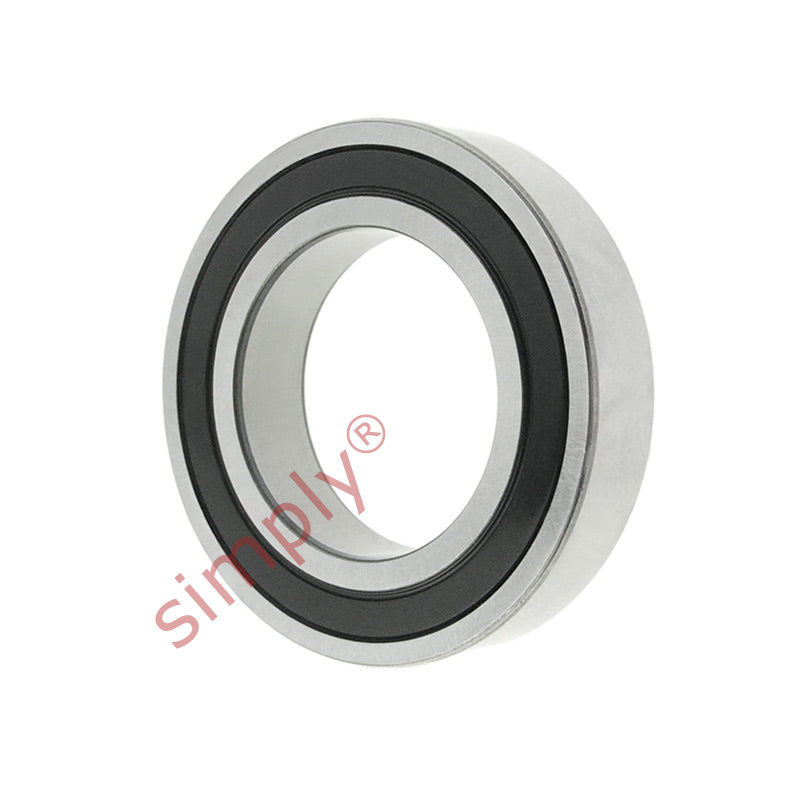

FAG 618002RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 10x19x5mm
Equivalent to: 61800NSEC3 61800DUC3 61800RSC3 61800RSHC3 61800PC3 61800RSRC3 61800LUC3 6800NSEC3 6800DUC3 6800RSC3 6800RSHC3 6800PC3 6800RSRC3 6800LUC3 618002NSEC3 61800DDUC3 618002RSC3 618002RS1C3 618002RSHC3 61800PPC3 61800LLU 68002NSEC3 6800DDUC3 68002RSC3 68002RS1C3 68002RSHC3 6800PPC3 68002RSRC3 6800LLUC3
Out of stock
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 10mm |
|---|---|
| D | 19mm |
| B | 5mm |
| Dynamic load C | 1.38 kN |
| Static load Co | 0.59 kN |
| Fatigue load limit Pu | 0.025 kN |
| Reference speed | 80000 rpm |
| Limiting speed | 22000 rpm |
| Mass | 0.0055 kg |
| d1 | 13mm |
| D2 | 19mm |
| r1r2 min | 0.3mm |
| da min | 12 |
