SKU: 618/500MA-SKF

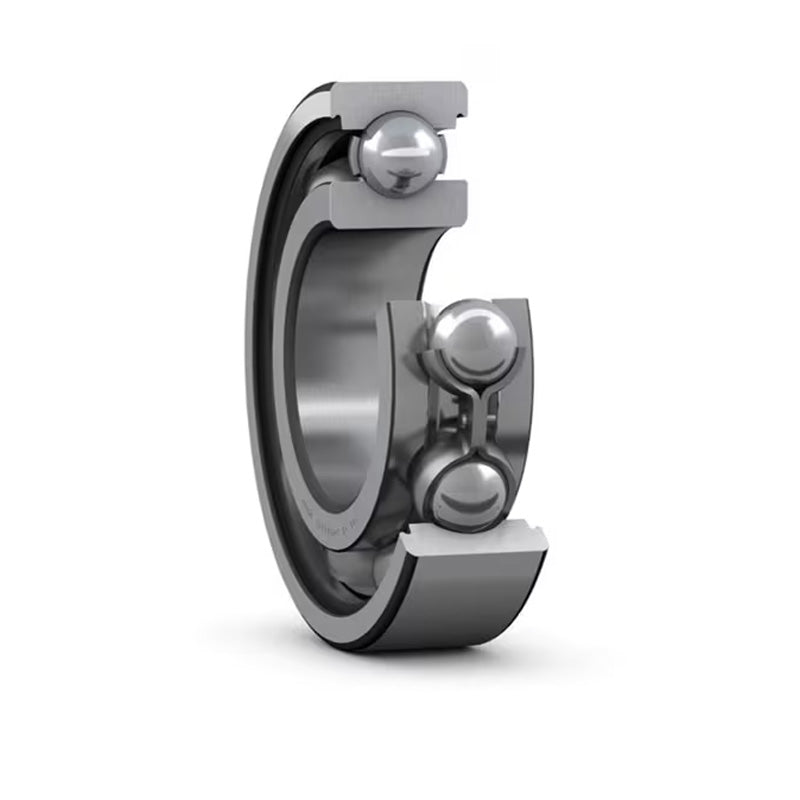

SKF 618/500MA Open Deep Groove Ball Bearing 500x620x56mm
SKF 618/500MA Open Deep Groove Ball Bearing 500x620x56mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 500mm
- Outside Diameter:
- 620mm
- Width:
- 56mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 500mm |
|---|---|
| D | 620mm |
| B | 56mm |
| Dynamic load | 332 kN |
| Static load | 620 kN |
| Fatigue load limit Pu | 11.2 kN |
| Reference speed | 1800 rpm |
| Limiting speed | 1500 rpm |
| Weight | 40.5 kg |
| d1 | 538mm |
| D1 | 582mm |
| D2 | 3mm |
| r1r2 min | 513mm |
| da min | 607mm |
| Da max | 2.5mm |
| ra max | 0.015mm |
| Calculation factor kr | 17 |
| Calculation factor Cor | N/A |
