SKU: 618/1500TN-SKF

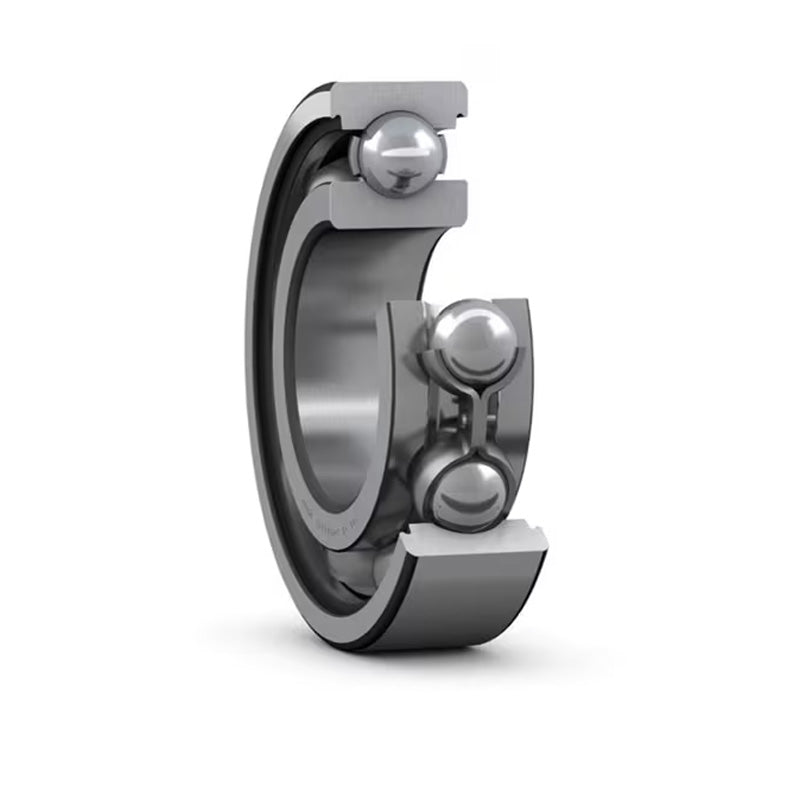

SKF 618/1500TN Open Deep Groove Ball Bearing 1500x1820x140mm
SKF 618/1500TN Open Deep Groove Ball Bearing 1500x1820x140mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 1500mm
- Outside Diameter:
- 1820mm
- Width:
- 140mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 1500mm |
|---|---|
| D | 1820mm |
| B | 140mm |
| Dynamic load | 1210 kN |
| Static load | 4 400 kN |
| Fatigue load limit Pu | 46.5 kN |
| Reference speed | 380 rpm |
| Limiting speed | 240 rpm |
| Weight | 690 kg |
| d1 | 1607mm |
| D1 | 1714mm |
| D2 | 7.5mm |
| r1r2 min | 1528mm |
| da min | 1792mm |
| Da max | 6mm |
| ra max | 0.015mm |
| Calculation factor kr | 17 |
| Calculation factor Cor | N/A |
