SKU: 6136MA/C3-SKF

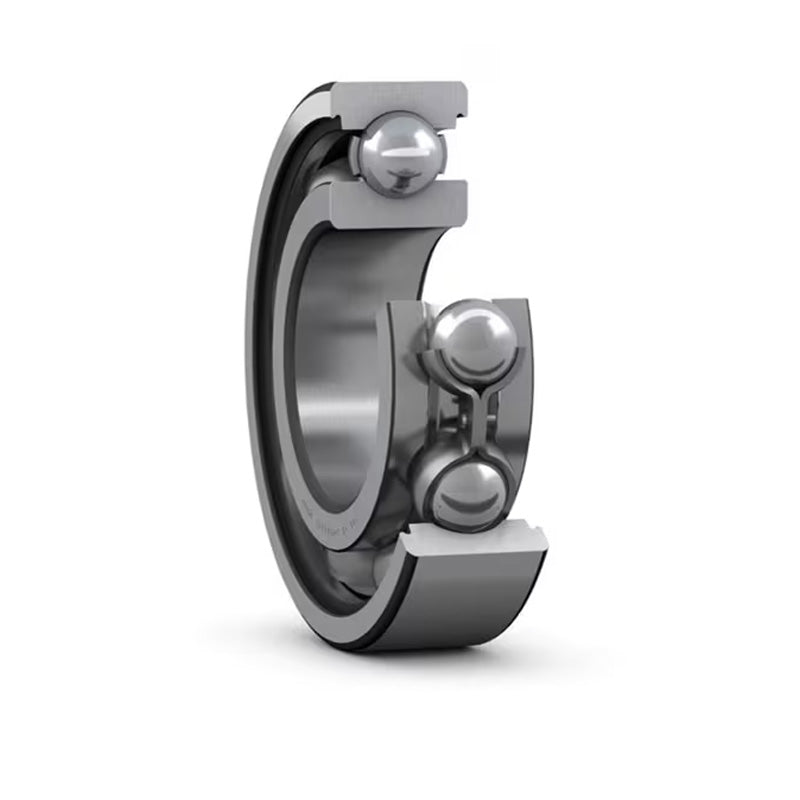

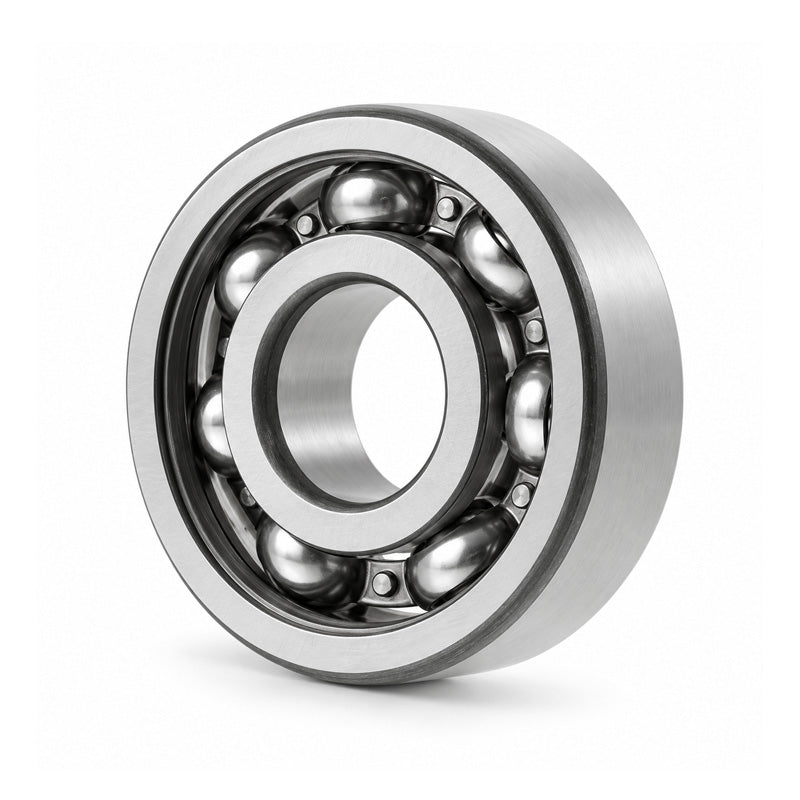

SKF 6136MAC3 Open Type Thin Section Deep Groove Ball Bearing 180x225x22mm
SKF 6136MAC3 Open Type Thin Section Deep Groove Ball Bearing 180x225x22mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 225mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 180mm |
|---|---|
| D | 225mm |
| B | 22mm |
| Dynamic load | 62.4 kN |
| Static load | 81.5 kN |
| Fatigue load limit Pu | 2.45 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 3400 rpm |
| Weight | 2 kg |
| d1 | 194mm |
| D1 | 211mm |
| D2 | 1.1mm |
| r1r2 min | 186mm |
| da min | 219mm |
| Da max | 1mm |
| ra max | 0.015mm |
| Calculation factor kr | 17 |
| Calculation factor Cor | N/A |
