SKU: 6096MB-SKF

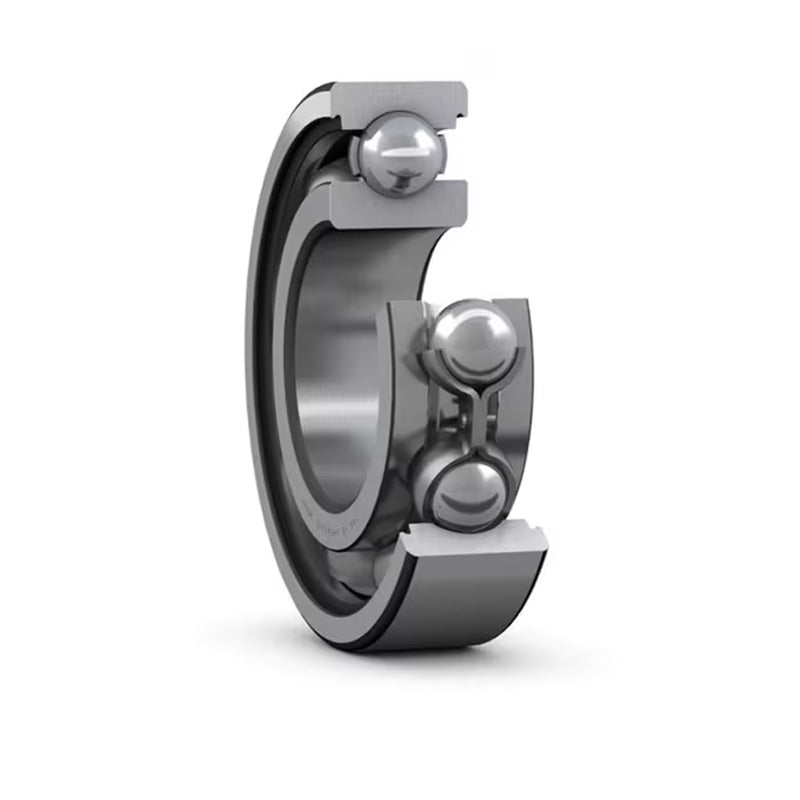

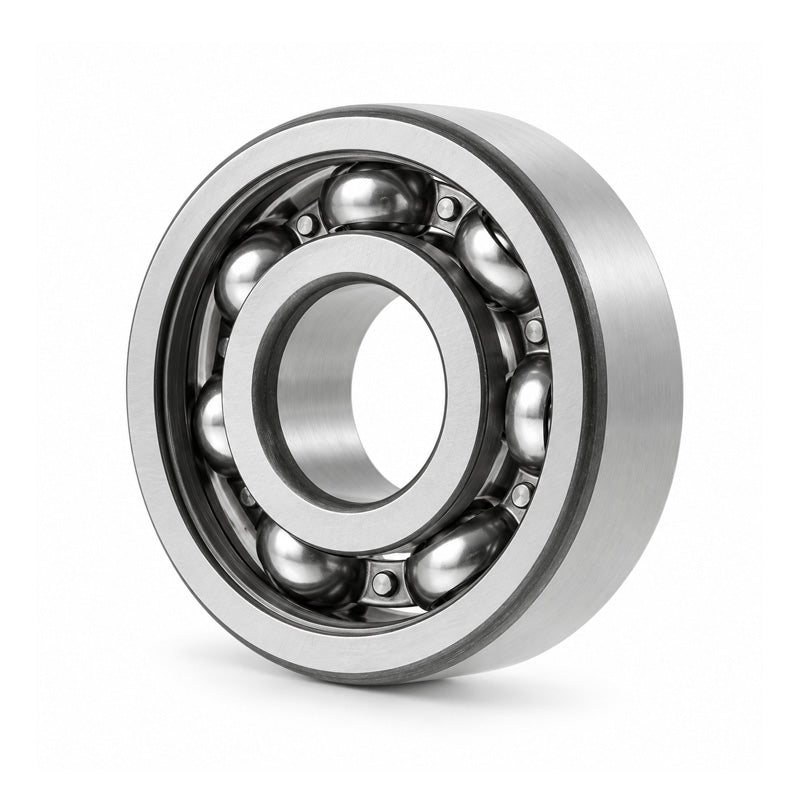

SKF 6096MB Open Deep Groove Ball Bearing 480x700x100mm
SKF 6096MB Open Deep Groove Ball Bearing 480x700x100mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 480mm
- Outside Diameter:
- 700mm
- Width:
- 100mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 480mm |
|---|---|
| D | 700mm |
| B | 100mm |
| Dynamic load | 618 kN |
| Static load | 1140 kN |
| Fatigue load limit Pu | 20 kN |
| Reference speed | 1700 rpm |
| Limiting speed | 1400 rpm |
| Weight | 125 kg |
| d1 | 548mm |
| D1 | 630mm |
| D2 | 6mm |
| r1r2 min | 503mm |
| da min | 677mm |
| Da max | 5 .mm |
| ra max | 0.025mm |
| Calculation factor kr | 16 |
| Calculation factor Cor | N/A |
