SKU: 6064M-SKF

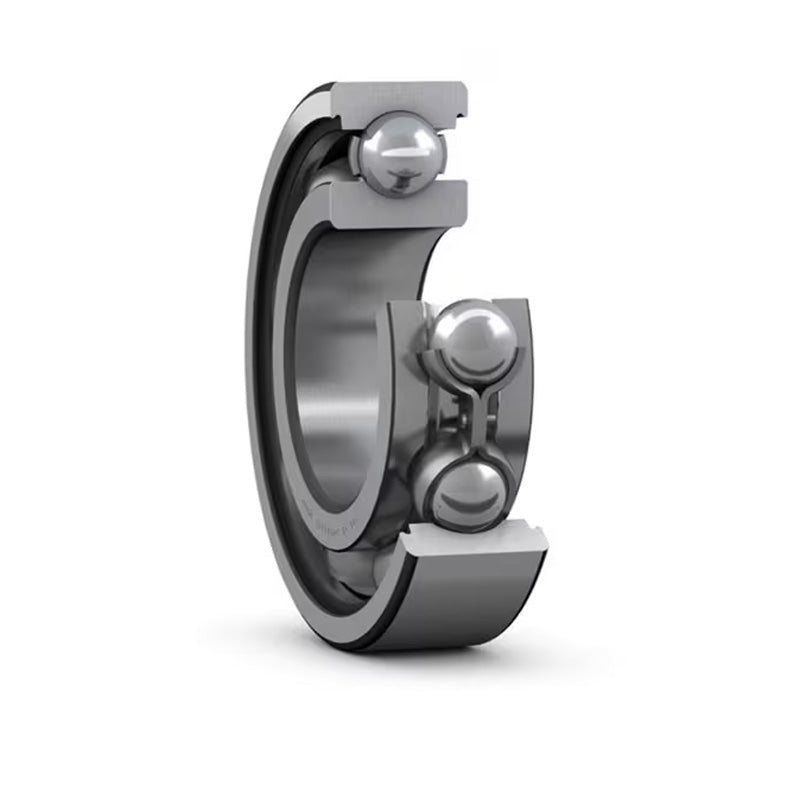

SKF 6064M Open Deep Groove Ball Bearing 320x480x74mm
SKF 6064M Open Deep Groove Ball Bearing 320x480x74mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 320mm
- Outside Diameter:
- 480mm
- Width:
- 74mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 320mm |
|---|---|
| D | 480mm |
| B | 74mm |
| Dynamic load | 371 kN |
| Static load | 540 kN |
| Fatigue load limit Pu | 11.4 kN |
| Reference speed | 2 600 rpm |
| Limiting speed | 2 200 rpm |
| Weight | 46 kg |
| d1 | 370mm |
| D1 | 431mm |
| D2 | 4mm |
| r1r2 min | 335mm |
| da min | 465mm |
| Da max | 3mm |
| ra max | 0.025mm |
| Calculation factor kr | 16 |
| Calculation factor Cor | N/A |
