SKU: 6021-NR-FAG

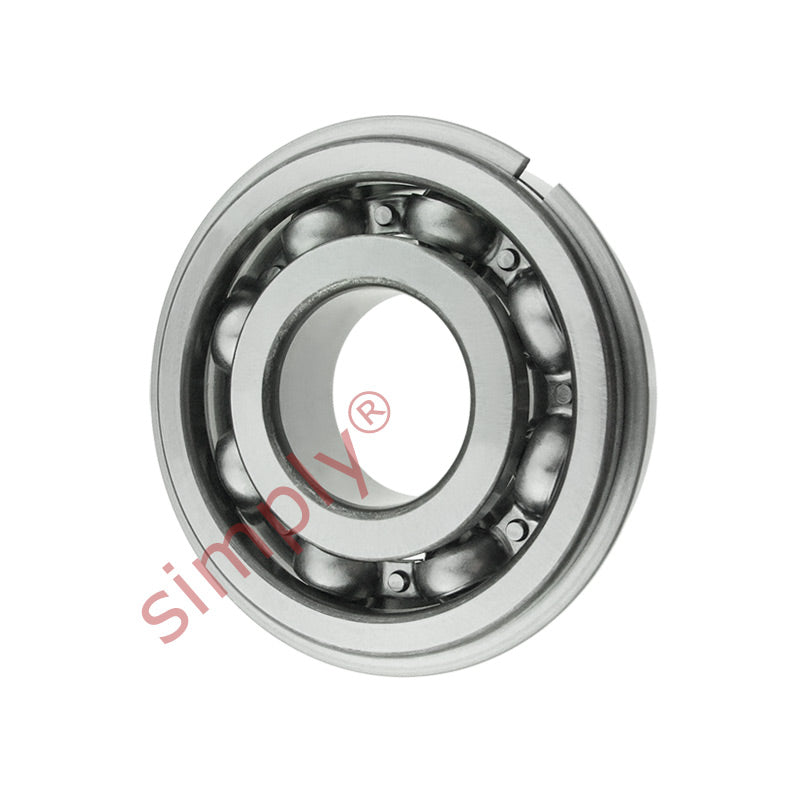

FAG 6021NR Deep Groove Ball Bearing with Snap Ring 105x160x26mm
FAG 6021NR Deep Groove Ball Bearing with Snap Ring 105x160x26mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 160mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 105mm |
|---|---|
| D | 160mm |
| B | 26mm |
| Dyamic load C | 76.1 kN |
| Static load Co | 65.5 kN |
| Fatigue load limit Pu | 2.4 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 5300 rpm |
| Mass | 1.6 kg |
| d1 | 122mm |
| d2 | 142mm |
| D2 | 147mm |
| r1r2 min | 2mm |
| da min | 116 |
