SKU: 6013-2RS1-SKF

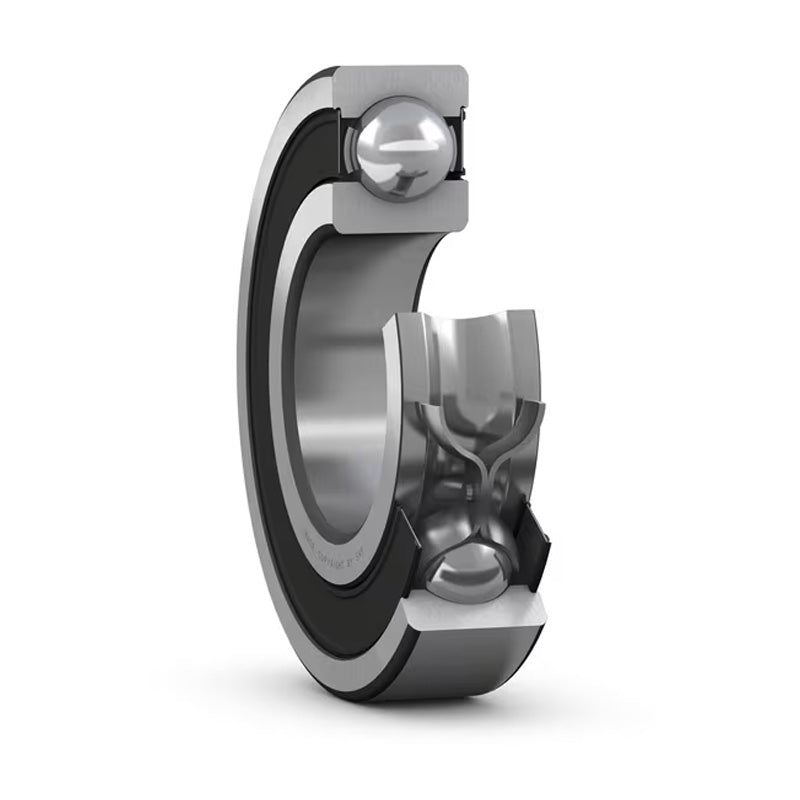

SKF 60132RS1 Rubber Sealed Deep Groove Ball Bearing 65x100x18mm
SKF 60132RS1 Rubber Sealed Deep Groove Ball Bearing 65x100x18mm
Regular price
€54,23
ex VAT
Regular price
Sale price
€54,23
ex VAT
Equivalent to: 6013NSE 6013DU 6013RS 6013RSH 6013P 6013RSR 6013LU 60132NSE 6013DDU 60132RS 60132RSH 6013PP 60132RSR 6013LLU
In stock
Price Break
4+
€41,29
10+
€38,97
20+
€38,51
30+
€38,04
50+
€37,58
75+
€37,11
100+
€34,79
200+
€34,33
250+
€33,87
500+
€33,40
1000+
€32,47
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| B | 18mm |
| Dynamic load C | 31.9 kN |
| Static load Co | 25 kN |
| Fatigue load limit Pu | 1.06 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 4000 rpm |
| Weight | 0.44 kg |
| d1 | 76.3mm |
| D2 | 91.5mm |
| r1r2 min | 1.1mm |
| da min | 71mm |
| Da max | 94mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 16 |
