SKU: 6003LLB/5K-NTN

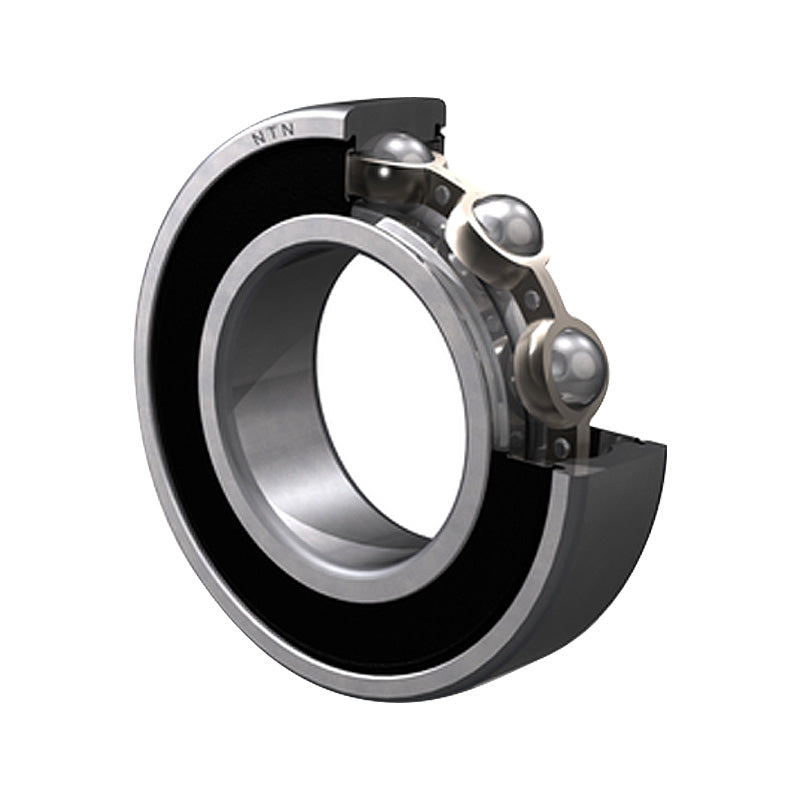

NTN 6003LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 17x35x10mm
NTN 6003LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 17x35x10mm
Regular price
€7,88
ex VAT
Regular price
Sale price
€7,88
ex VAT
Equivalent to: 6003LLBCM 60032NKE 6003VV 60032RSL 60032RZ
In stock
Price Break
3+
€6,00
5+
€5,66
10+
€5,59
25+
€5,53
49+
€5,46
74+
€5,39
99+
€5,06
199+
€4,99
249+
€4,92
499+
€4,85
999+
€4,72
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6003LLBCM 60032NKE 6003VV 60032RSL 60032RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 35mm |
| B | 10mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 7.55 kN |
| C<sub>or</sub> | 3.35 kN |
| C<sub>u</sub> | 0.243 kN |
| f<sub>0</sub> | 13.6 kN |
| Grease | 20000 rpm |
| Oil | 24000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 19mm |
| d<sub>a</sub> Max. | 21mm |
| D<sub>a</sub> Max. | 33mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.039 kg |
