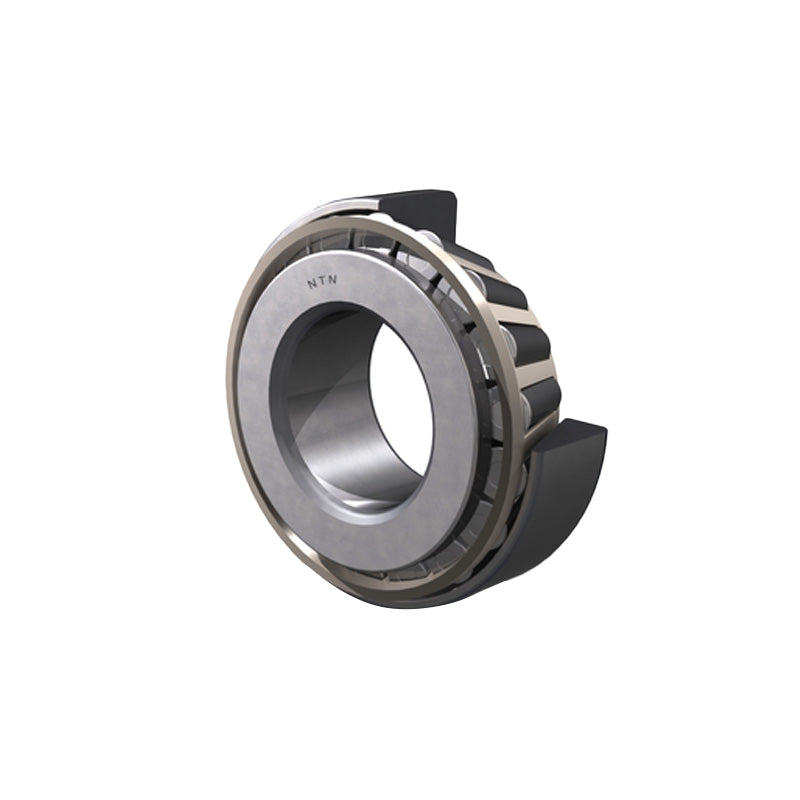

NTN 4T-T4CB140 Tapered Roller Bearing Cup and Cone Set 140x195x29mm

NTN 4T-T4CB140 Tapered Roller Bearing Cup and Cone Set 140x195x29mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 140mm
D 195mm
T 29mm
B 27mm
C 21mm
r<sub>s</sub> min 3mm
r<sub>ls</sub> min 3mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 208kN
Static load C<sub>or</sub> 299kN
Allowable Speed in grease 1700rpm
Allowable Speed in oil 2200rpm
--- Abutment dimensions
ISO Dimension series 4CB
d<sub>a</sub> min 154mm
d<sub>b</sub> max 149mm
D<sub>a</sub> max 181mm
D<sub>a</sub> min 176mm
D<sub>b</sub> min 190mm
S<sub>a</sub> min 5mm
S<sub>b</sub> min 8mm
r<sub>as</sub> max 2.5mm
r<sub>1as</sub> max 2.5mm
Load center a 40.5mm
Constant e 0.5mm
Y<sub>2</sub> 1.19mm
Y<sub>0</sub> 0.66mm
Weight 2.35kg
