SKU: 4T-359A/354A-NTN

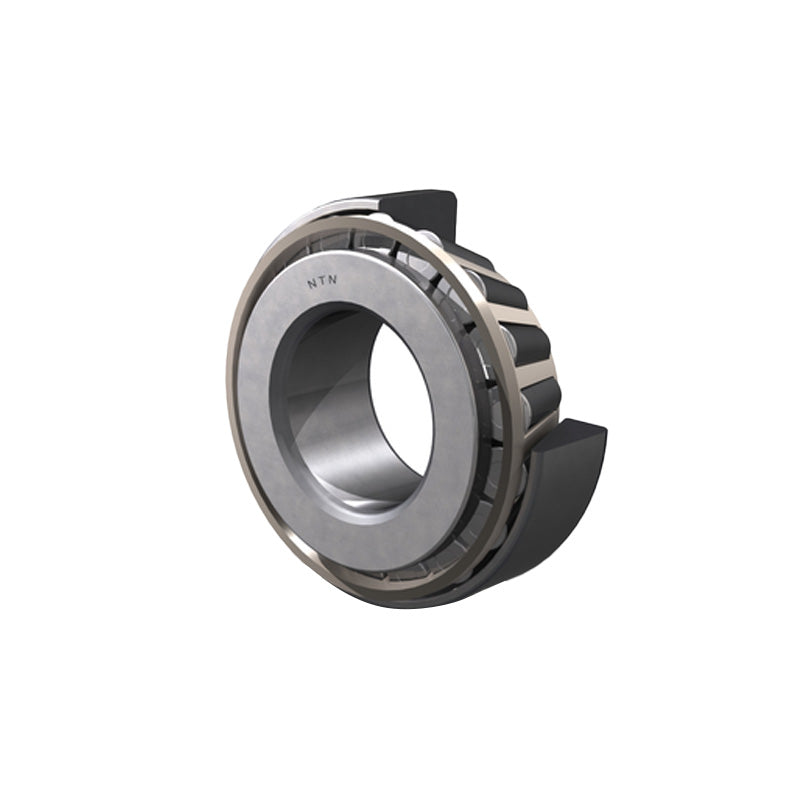

NTN 4T-359A/354A Tapered Roller Bearing Cup and Cone Set 1.813x3.3465x0.813 inch

NTN 4T-359A/354A Tapered Roller Bearing Cup and Cone Set 1.813x3.3465x0.813 inch

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 1.813 inch (46.038mm)
D (inch) 3.3465 inch (85.001mm)
T 0.813 inch (20.638mm)
B 0.854 inch (21.692mm)
C 0.69 inch (17.462mm)
--- Speeds and loads
C<sub>r</sub> 77.5kN
C<sub>or</sub> 79.5kN
Speed in grease 4400rpm
Speed in oil 5800rpm
--- Abutment dimensions
d<sub>a</sub> 57mm
d<sub>b</sub> 51mm
D<sub>a</sub> 77mm
D<sub>b</sub> 80mm
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 1.3mm
Load center<sup>2</sup> 5.1mm
Constant e 0.31
Axial load factor Y<sub>2</sub> 1.96
Axial load factor Y<sub>0</sub> 1.08
Weight 0.489kg
