SKU: 4T-2785/2720-NTN

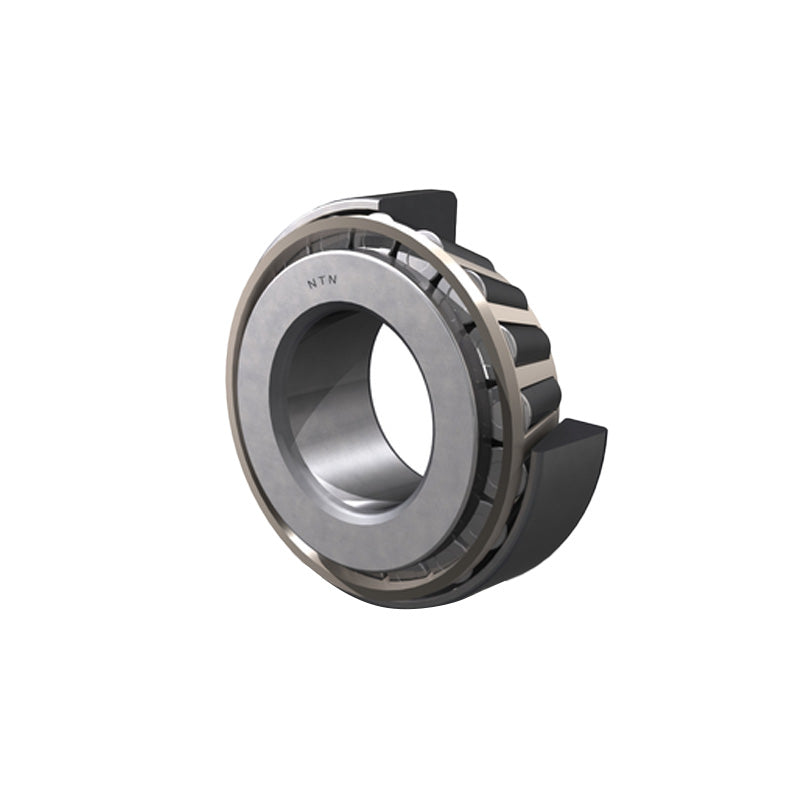

NTN 4T-2785/2720 Tapered Roller Bearing Cup and Cone Set 1.313x3x0.937 inch

NTN 4T-2785/2720 Tapered Roller Bearing Cup and Cone Set 1.313x3x0.937 inch

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 1.313 inch (33.338mm)
D (inch) 3 inch (76.2mm)
T 0.937 inch (23.812mm)
B 1.01 inch (25.654mm)
C 0.75 inch (19.05mm)
--- Speeds and loads
C<sub>r</sub> 81kN
C<sub>or</sub> 90.5kN
Speed in grease 5100rpm
Speed in oil 6800rpm
--- Abutment dimensions
d<sub>a</sub> 46mm
d<sub>b</sub> 40mm
D<sub>a</sub> 66mm
D<sub>b</sub> 70mm
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 3.3mm
Load center<sup>2</sup> 7.8mm
Constant e 0.3
Axial load factor Y<sub>2</sub> 1.98
Axial load factor Y<sub>0</sub> 1.09
Weight 0.548kg
