SKU: 4T-26882/26823-NTN

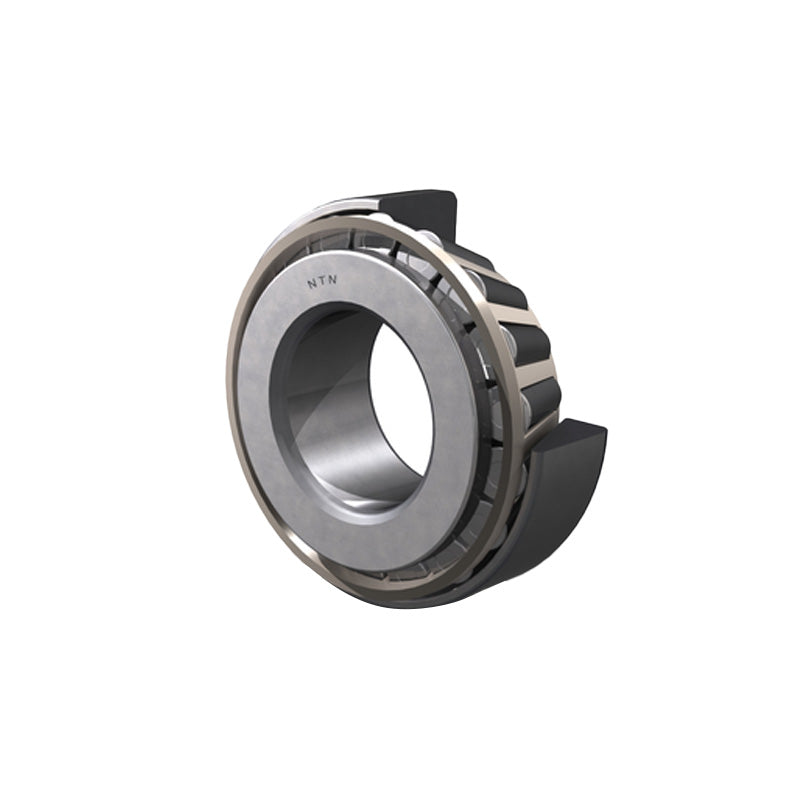

NTN 4T-26882/26823 Tapered Roller Bearing Cup and Cone Set 1.625x3x1 inch

NTN 4T-26882/26823 Tapered Roller Bearing Cup and Cone Set 1.625x3x1 inch

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 1.625 inch (41.275mm)
D (inch) 3 inch (76.2mm)
T 1 inch (25.4mm)
B 1 inch (25.40mm)
C 0.81 inch (20.638mm)
--- Speeds and loads
C<sub>r</sub> 85kN
C<sub>or</sub> 97.5kN
Speed in grease 4800rpm
Speed in oil 6400rpm
--- Abutment dimensions
d<sub>a</sub> 54mm
d<sub>b</sub> 47mm
D<sub>a</sub> 69mm
D<sub>b</sub> 73mm
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 1.5mm
Load center<sup>2</sup> 7.4mm
Constant e 0.32
Axial load factor Y<sub>2</sub> 1.88
Axial load factor Y<sub>0</sub> 1.04
Weight 0.49kg
