SKU: 475621.MB

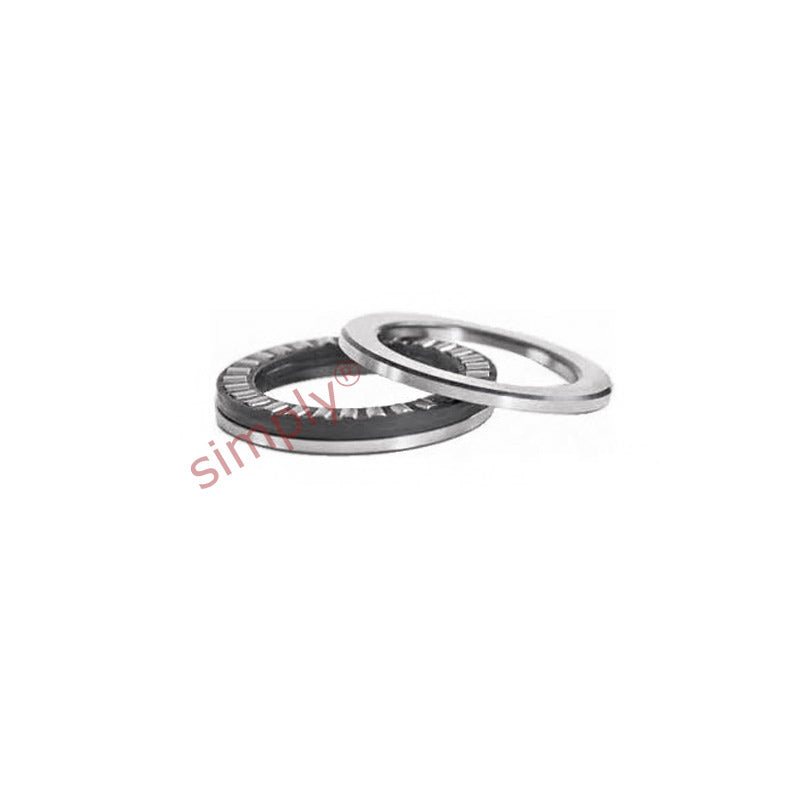

Major Brand 475621 Cylindrical Roller Thrust Bearing 622.3x812.8x114.3mm
Major Brand 475621 Cylindrical Roller Thrust Bearing 622.3x812.8x114.3mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 622.3mm
- Outside Diameter:
- 812.8mm
- Width:
- 114.3mm
Technical
Technical
| d | 622.3mm |
|---|---|
| D | 812.8mm |
| H | 114.3mm |
| Dynamic load C | 3800 kN |
| Static load Co | 25000 kN |
| Fatigue load limit Pu | 1560 kN |
| Min load factor A | 50 |
| Reference speed | 160 rpm |
| Limiting speed | 320 rpm |
| Weight | 180 kg |
