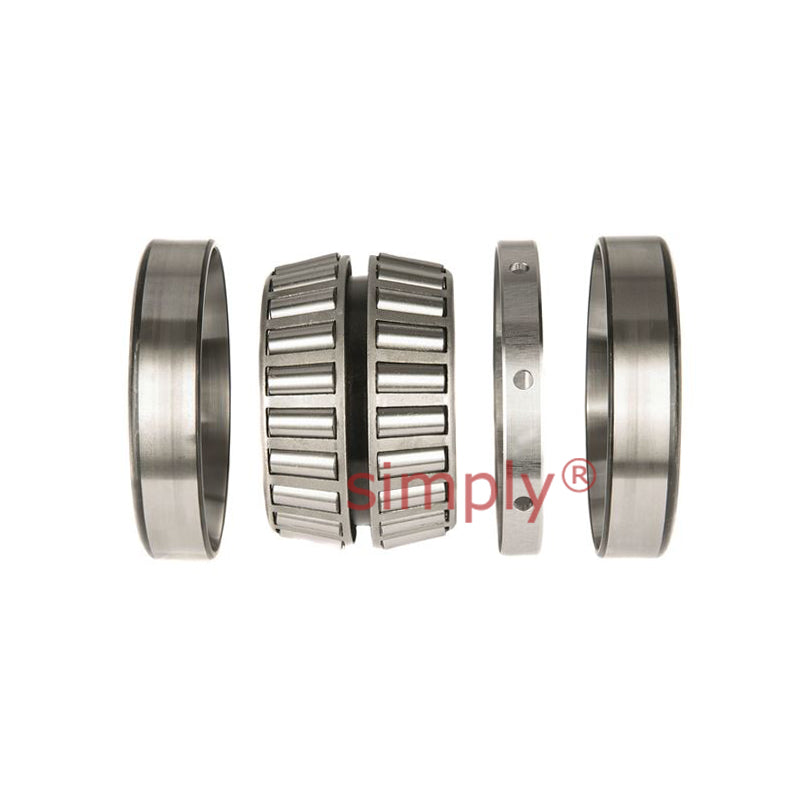

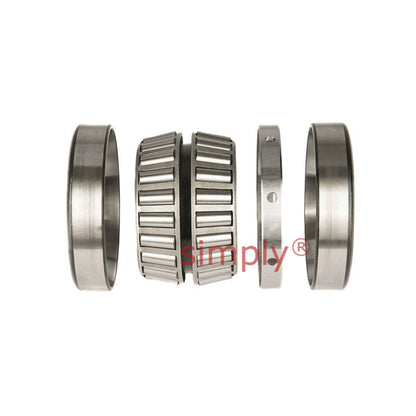

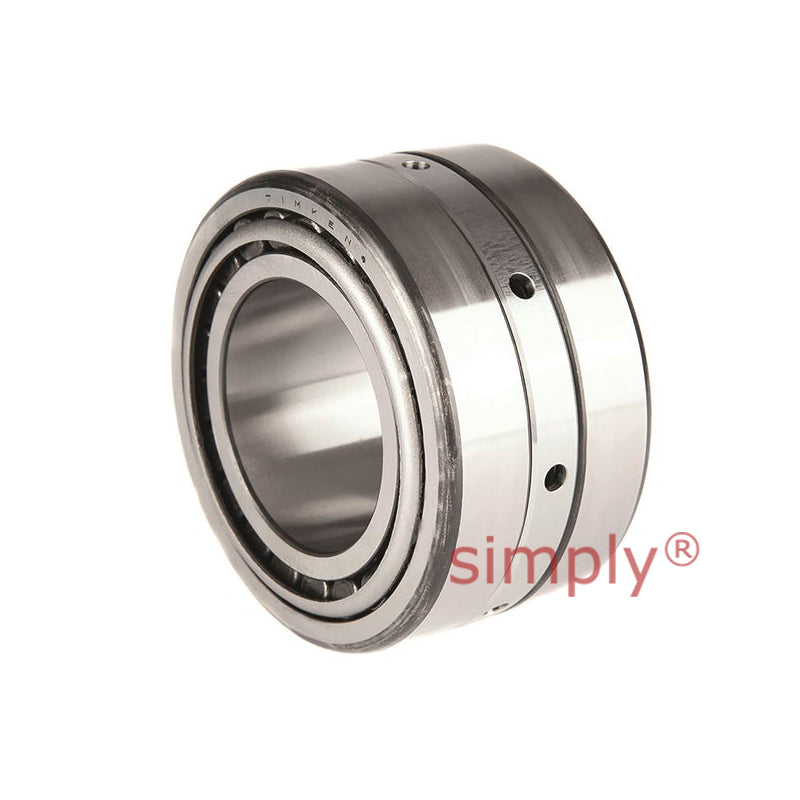

Timken 46790D/46720/Y5S-46720 TDI Double Inner Race Taper Roller Bearing 6.5x8.875x3.125x3 inch
Timken 46790D/46720/Y5S-46720 TDI Double Inner Race Taper Roller Bearing 6.5x8.875x3.125x3 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 165.1mm = 6.5 (6-1/2) inch
- Outside Diameter:
- 225.43mm = 8.875 (8-7/8) inch
- Width:
- 79.38mm = 3.125 (3-1/8) inch
Technical
Technical
| d | 165.1mm = 6.5 inch |
|---|---|
| D | 225.425mm = 8.875 inch |
| T | 79.375mm = 3.125 inch |
| C | 76.2mm = 3 inch |
| Dynamic (1) C1 | 489000N |
| Factors (5) e | 0.38 |
| Factors (5) Y1 | 1.76 |
| Factors (5) Y2 | 2.62 |
| Dynamic (2) C90 | 72800N |
| Dynamic (2) Ca90 | 47800N |
| Dynamic (2) C90(2) | 127000N |
| Factors (5) K | 1.52 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 175mm = 6.89 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 209mm = 8.23 inch |
| G1 | 572 |
| G2 | 175 |
| Cg | 0.1432 |
