SKU: 389DE/382A/Y2S-382A-TIM

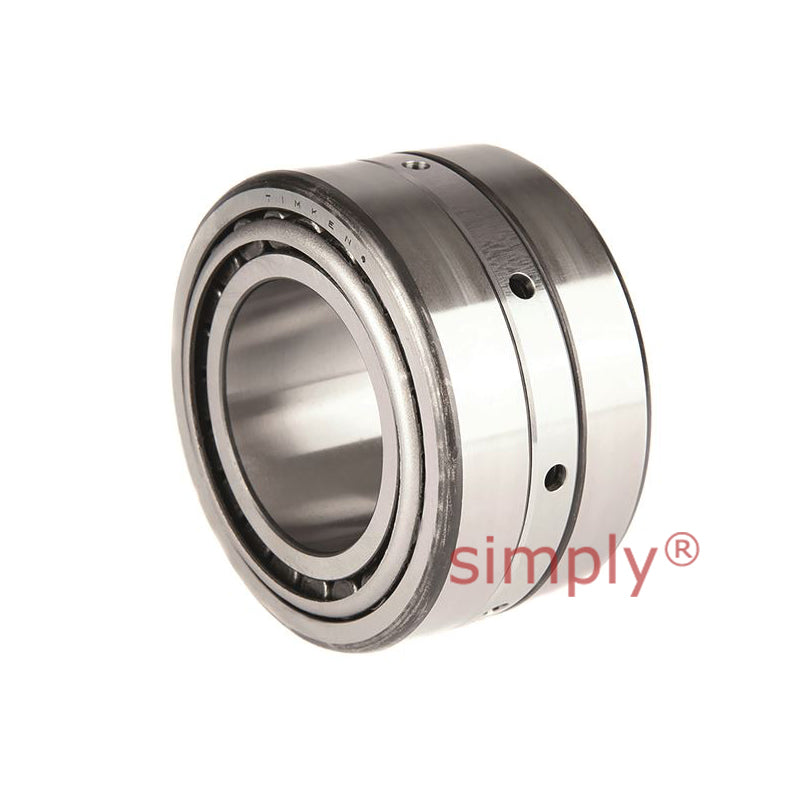

Timken 389DE/382A/Y2S-382A TDI Double Inner Race Taper Roller Bearing 2.1875x3.8125x2.0196x2.094 inch
Timken 389DE/382A/Y2S-382A TDI Double Inner Race Taper Roller Bearing 2.1875x3.8125x2.0196x2.094 inch
Out of stock
Share this product
Description
Description

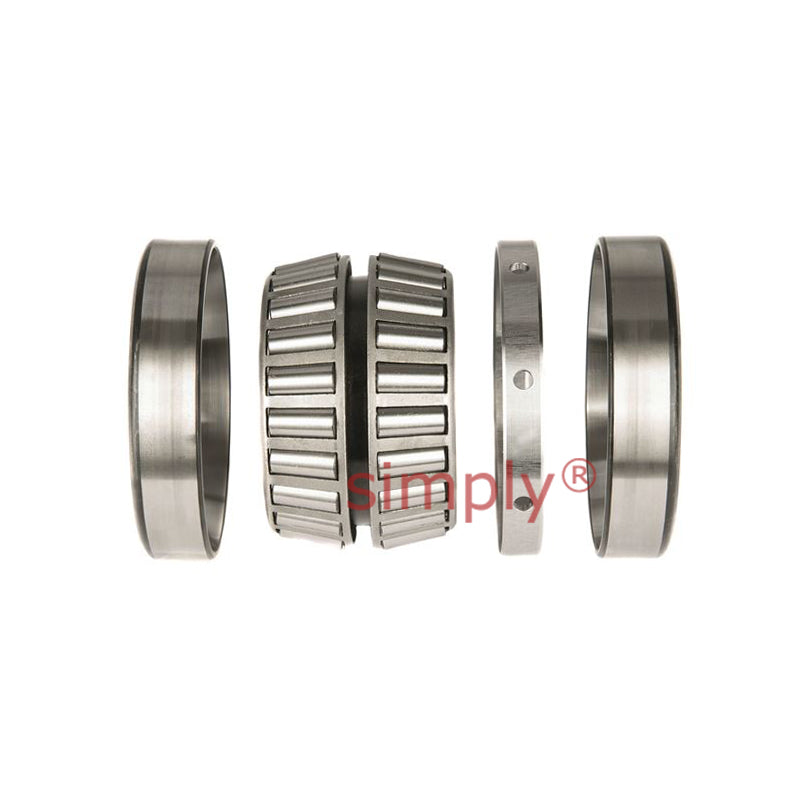

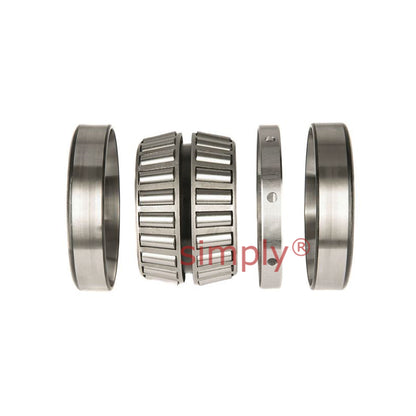

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Outside Diameter:
- 96.84mm = 3.813 (3-13/16) inch
- Width:
- 51.3mm = 2.02 inch
Technical
Technical
| d | 55.562mm = 2.1875 inch |
|---|---|
| D | 96.838mm = 3.8125 inch |
| T | 51.298mm = 2.0196 inch |
| C | 53.188mm = 2.094 inch |
| Dynamic (1) C1 | 147000N |
| Factors (5) e | 0.35 |
| Factors (5) Y1 | 1.91 |
| Factors (5) Y2 | 2.84 |
| Dynamic (2) C90 | 21800N |
| Dynamic (2) Ca90 | 13200N |
| Dynamic (2) C90(2) | 38000N |
| Factors (5) K | 1.65 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 62mm = 2.44 inch |
| Housing max shaft fillet radius r (3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Db | 89mm = 3.5 inch |
| G1 | 42 |
| G2 | 15.7 |
| Cg | 0.0859 |
