SKU: 3811.B.2Z.TVH.EU

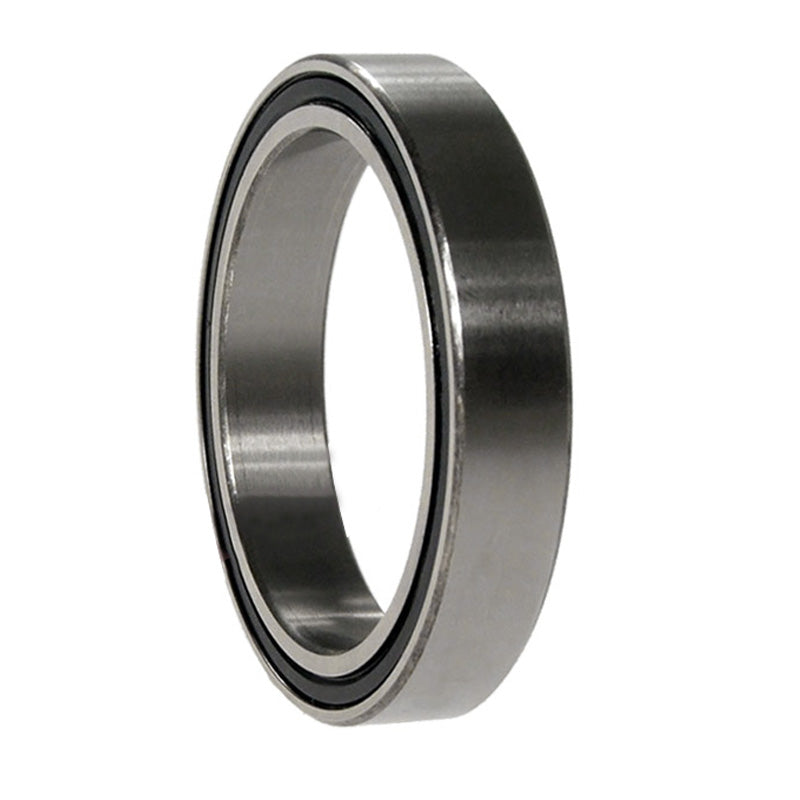

Budget 3811B2ZRTVH Metal Shielded Double Row Angular Contact Ball Bearing 55x72x13mm
Budget 3811B2ZRTVH Metal Shielded Double Row Angular Contact Ball Bearing 55x72x13mm
Equivalent to: 5811B2RSRTVH
Out of stock
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 72mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 72mm |
| B | 13mm |
| a | 30.7mm |
| d1 max | 61.9mm |
| Da max | 70mm |
| da min | 57mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle α | 25° |
| Weight | 0.09 kg |
| Dynamic load Cr | 12100 N |
| Static load Cor | 15700 N |
| Fatigue limit load Cur | 880 N |
| Reference speed | 4300 rpm |
| Limiting Speed | 5100 rpm |
