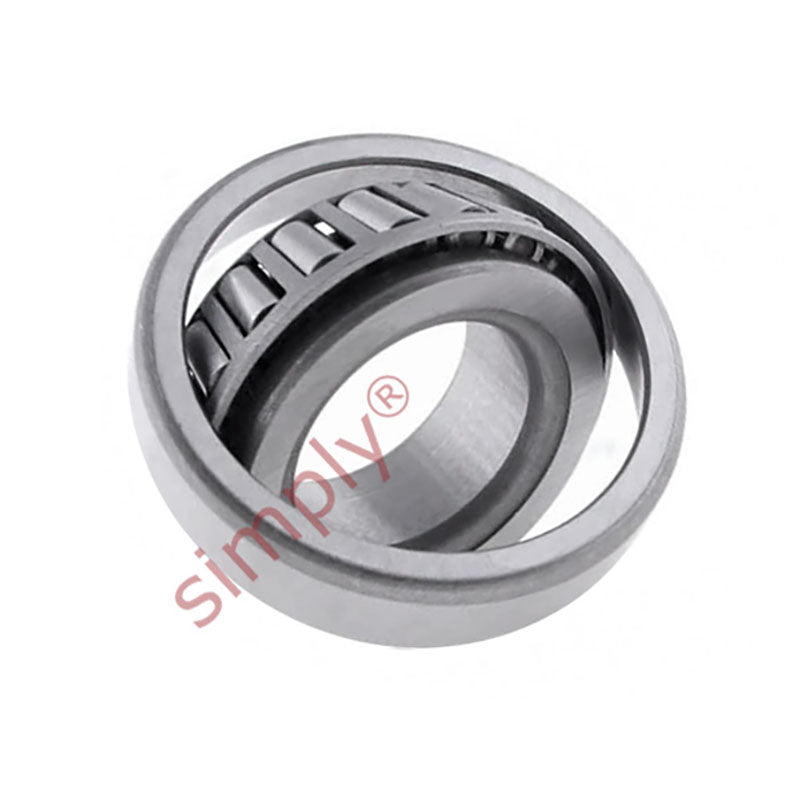

SKF 368A/362A/Q Imperial Taper Roller Bearing 2x3.5x0.8125 inches

Name: SKF 368A/362A/Q Imperial Taper Roller Bearing 2x3.5x0.8125 inches
Brand: SKF
SKU: 368A/362A/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 50.8mm = 2 inch
Outside Diameter:: 88.9mm = 3.5 (3-1/2) inch
Width:: 20.64mm = 0.813 (13/16) inch
Seals / Shields:: None

Technical

d	50.8mm
D	88.9mm
T	20.637mm
Dynamic load	76.5 kN
Static load	91.5 kN
Fatigue load limit Pu	10.4 kN
Reference speed	5600 rpm
Limiting speed	8000 rpm
Weight	0.5 kg
d1	66.2mm
B	22.225mm
C	16.513mm
r1r2 min	3.5mm
r3r4 min	1.3mm
a	16mm
da max	58mm
db min	62mm
Da min	80mm
Da max	82.5mm
Db min	83mm
Ca min	4mm
Cb min	4mm
ra max	3mm
rb max	1.3mm
Calculation factor e	0.31
Calculation factor Y	1.9
Calculation factor Y0	1.1
