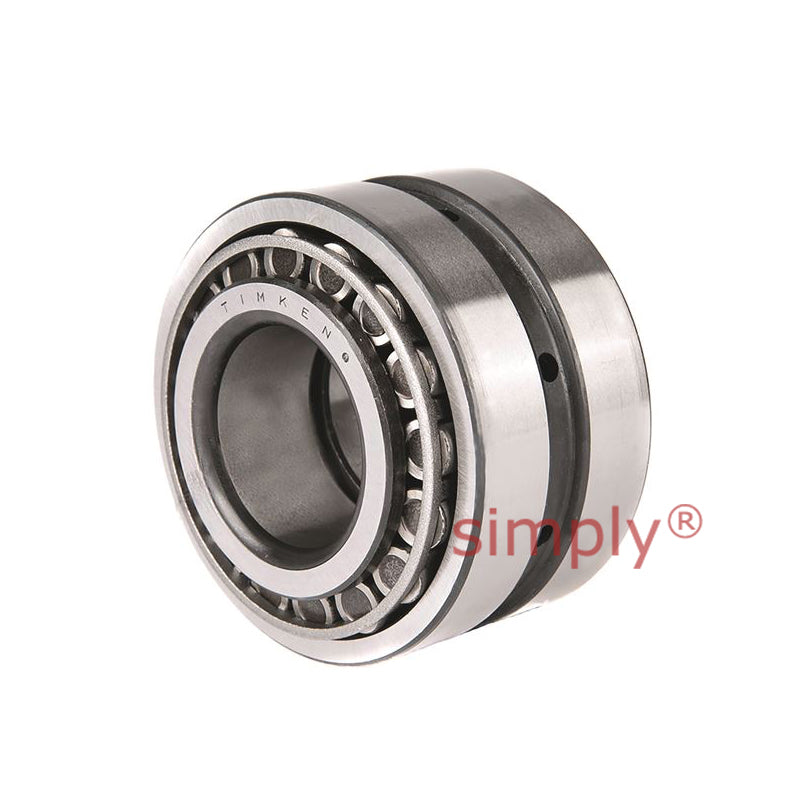

Timken 365A/363D/X1S365A TDO Double Outer Race Taper Roller Bearing 1.625x3.5433x1.9689x1.6563 inch
Timken 365A/363D/X1S365A TDO Double Outer Race Taper Roller Bearing 1.625x3.5433x1.9689x1.6563 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 41.28mm = 1.625 inch
- Outside Diameter:
- 90.00mm = 3.5433 inch
- Width:
- 50.01mm = 1.9689 inch
Technical
Technical
| d | 41.275mm = 1.625 inch |
|---|---|
| D | 90mm = 3.5433 inch |
| T | 50.01mm = 1.9689 inch |
| C | 42.07mm = 1.6563 inch |
| Dynamic (1) C1 | 138000N |
| Factors (5) e | 0.32 |
| Factors (5) Y1 | 2.11 |
| Factors (5) Y2 | 3.14 |
| Dynamic (2) C90 | 20600N |
| Dynamic (2) Ca90 | 11300N |
| Dynamic (2) C90(2) | 35900N |
| Factors (5) K | 1.83 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 55mm = 2.17 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 84mm = 3.31 inch |
| G1 | 33.8 |
| G2 | 14 |
| Cg | 0.0773 |
