SKU: 3318DMA-SKF

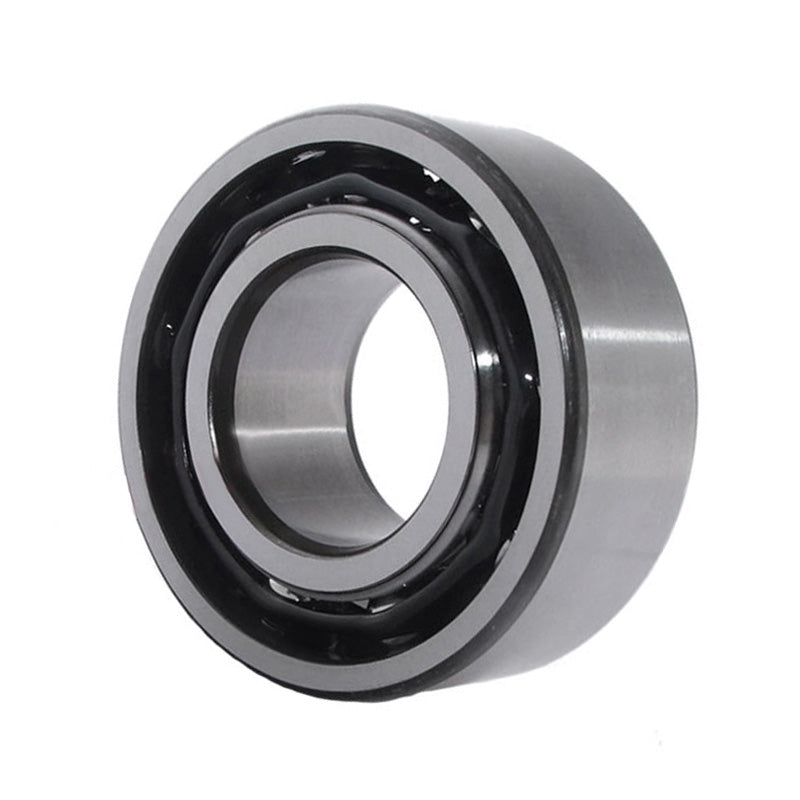

SKF 3318DMA Double Row Angular Contact Ball Bearing Steel Cage 90x190x73mm
SKF 3318DMA Double Row Angular Contact Ball Bearing Steel Cage 90x190x73mm
Equivalent to: 5318
Out of stock
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 73mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 190mm |
| B | 73mm |
| Dynamic load Cr | 225 kN |
| Static load Cor | 250 kN |
| Fatigue load limit Pu | 8.8 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 3200 rpm |
| Weight | 10 kg |
| d1 | 130mm |
| D1 | 167mm |
| r1r2 min | 3mm |
| a | 178mm |
| da min | 104mm |
| Da max | 176mm |
| ra max | 2.5mm |
