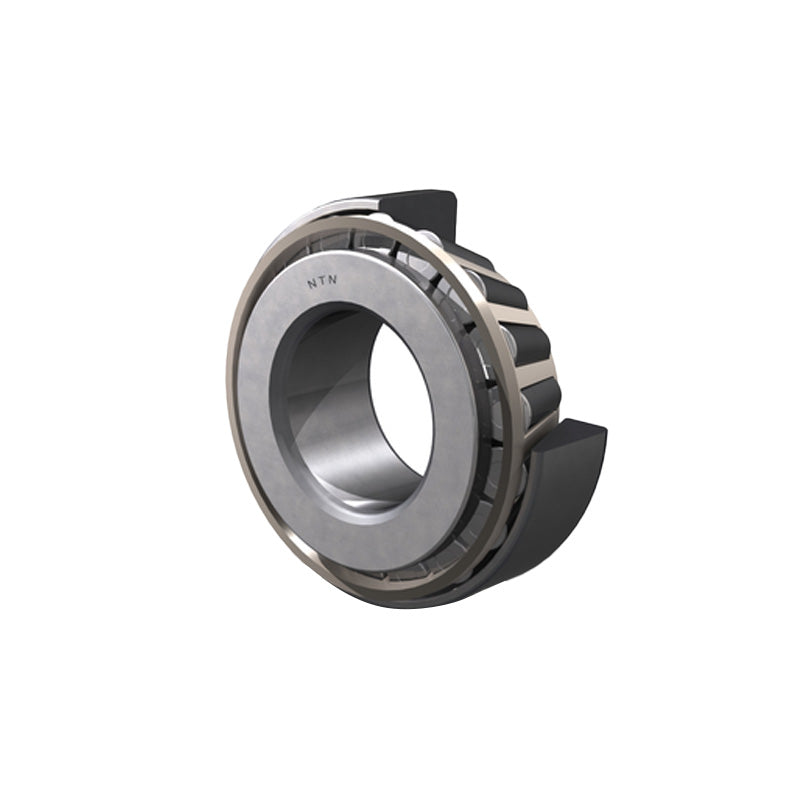

NTN 32948XUUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 240x320x51mm

NTN 32948XUUTG Ultage Series Tapered Roller Bearing Cup and Cone Set 240x320x51mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 240mm
D 320mm
T 51mm
B 51mm
C 39mm
r<sub>s</sub> min 3mm
r<sub>ls</sub> min 2.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 625kN
Static load C<sub>or</sub> 1000kN
Fatigue Load limit C<sub>u</sub> 90kN
Allowable Speed in grease 940rpm
Allowable Speed in oil 1300rpm
--- Abutment dimensions
ISO Dimension series 4EC
d<sub>a</sub> min 254mm
d<sub>b</sub> max 252.5mm
D<sub>a</sub> max 308mm
D<sub>a</sub> min 289mm
D<sub>b</sub> min 312.5mm
S<sub>a</sub> min 10mm
S<sub>b</sub> min 12mm
r<sub>as</sub> max 2.5mm
r<sub>1as</sub> max 2mm
Load center a 65.5mm
Constant e 0.46mm
Y<sub>2</sub> 1.31mm
Y<sub>0</sub> 0.72mm
Weight 10.9kg
