SKU: 32340UTG-NTN

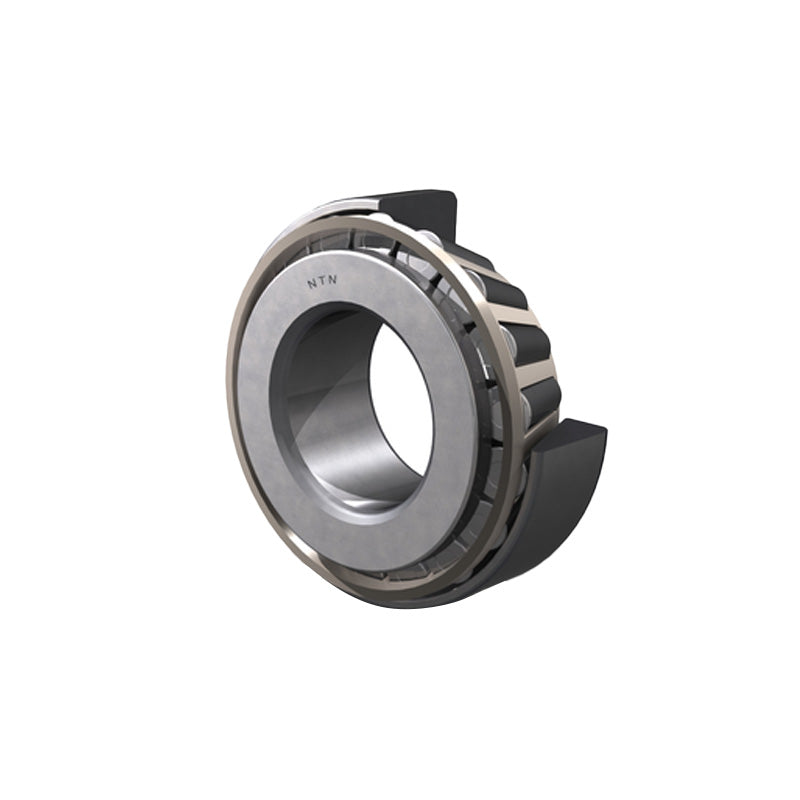

NTN 32340UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 200x420x146mm

NTN 32340UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 200x420x146mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

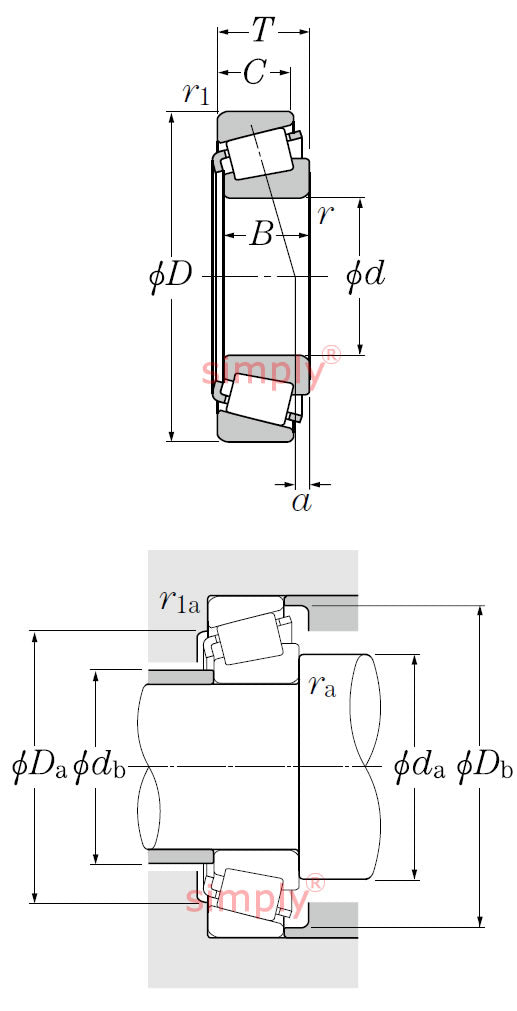

--- Bearing dimensions
d 200mm
D 420mm
T 146mm
B 138mm
C 115mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 2240kN
Static load C<sub>or</sub> 2650kN
Fatigue Load limit C<sub>u</sub> 230kN
Allowable Speed in grease 850rpm
Allowable Speed in oil 1200rpm
--- Abutment dimensions
d<sub>a</sub> min 222mm
d<sub>b</sub> max 242mm
D<sub>a</sub> max 398mm
D<sub>a</sub> min 335mm
D<sub>b</sub> min 391.5mm
S<sub>a</sub> min 3.2mm
S<sub>b</sub> min 31mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 4mm
Load center a 105mm
Constant e 0.37mm
Y<sub>2</sub> 1.6mm
Y<sub>0</sub> 0.88mm
Weight 89.6kg
